DDR5/4 PHY for Samsung
Provides the industry's highest data rates with low-latency througput while balancing power consumption and minimizing area The l…
Overview
Provides the industry's highest data rates with low-latency througput while balancing power consumption and minimizing area
The latest, the DDR5/4 PHY IP for Samsung 7nm, is comprised of architectural improvements to its highly successful predecessor, achieving breakthrough performance, lower power consumption, and smaller overall area. The applicationoptimized DDR PHY IP can achieve speeds up to 4800Mbps. Low-power features include the addition of a VDD low-power idle state in the PHY and power-efficient clocking during low-speed operation for longer battery life and greener operation. Redesigned I/O elements reduce the overall area by up to 20%. The DDR PHY IP is developed by experienced teams with industry-leading domain expertise and extensively validated with multiple hardware platforms. It is engineered to quickly and easily integrate into SoCs, and is verified with the Cadence Denali Controller IP for DDR as part of a complete memory subsystem solution. The DDR PHY IP is designed to connect seamlessly and work with a third-party DFI-compliant memory controller.
The latest, the DDR5/4 PHY IP for Samsung 7nm, is comprised of architectural improvements to its highly successful predecessor, achieving breakthrough performance, lower power consumption, and smaller overall area. The applicationoptimized DDR PHY IP can achieve speeds up to 4800Mbps. Low-power features include the addition of a VDD low-power idle state in the PHY and power-efficient clocking during low-speed operation for longer battery life and greener operation. Redesigned I/O elements reduce the overall area by up to 20%. The DDR PHY IP is developed by experienced teams with industry-leading domain expertise and extensively validated with multiple hardware platforms. It is engineered to quickly and easily integrate into SoCs, and is verified with the Cadence Denali Controller IP for DDR as part of a complete memory subsystem solution. The DDR PHY IP is designed to connect seamlessly and work with a third-party DFI-compliant memory controller.
Key features
- Application optimized configurations for fast time to delivery and lower risk
- Memory controller interface complies with DFI standards up to 5.0
- Internal and external datapath loop-back modes
- Per-bit deskew on read and write datapath
- Low-power VDD idle, VDD light sleep, and powerefficient clocking in low-speed modes
- I/O pads with impedance calibration logic and data retention capability
- RX and TX equalization for heavily loaded systems
- Fine-grain custom delay cell for delay tuning
Block Diagram

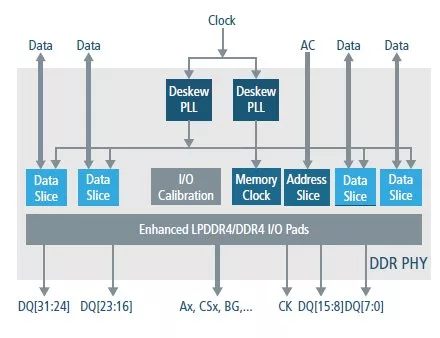

DDR5/4 PHY for Samsung block diagram
Applications
- Communications,
- Consumer Electronics,
- Data Processing,
- Industrial and Medical,
- Military/Civil Aerospace
What’s Included?
- STA scripts for use at chip or standalone PHY levels
- Liberty timing model
- SDF for back-annotated timing verification
- Verilog models of I/O pads, and RTL for all PHY modules
- Verilog testbench with memory model, configuration files, and sample tests
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| Samsung | 7nm | SF7 | Available on request |
Specifications
Identity
Part Number
DDR5/4 PHY for Samsung
Vendor
Cadence Design Systems, Inc.
Type
Silicon IP
Controller / PHY
Controller + PHY
,
PHY
Files
Note: some files may require an NDA depending on provider policy.
Provider
Cadence Design Systems, Inc.
HQ:
USA
