BT656 Test Pattern Generator

The BT656_TPG module is a versatile test pattern generator capable of producing a range of test patterns in 8-bit ITU-R BT.656 fo…

Contact Provider Request Datasheet

Overview

The BT656_TPG module is a versatile test pattern generator capable of producing a range of test patterns in 8-bit ITU-R BT.656 format. The module is ideal for use in the prototyping stages of digital video systems, or as a known good reference source for BT.656 video.

The video mode and output test pattern is controlled by a pair of generic parameters. The video output mode can be set using the parameter tpg_mode. This gives the option of either 576i (PAL) or 480i (NTSC) output formats. The type of test pattern output is controlled by the tpg_type parameter. In total there are a range of 6 different test patterns to choose from.

The output video is a standard BT.656 8-bit stream that is synchronous with the clk signal. The clock frequency is normally set to 27 MHz in order to comply with the BT.656 standard and the 16-bit pixel sample rate of 13.5 MHz.

Key features

  • Synthesizable, technology independent VHDL IP Core
  • Test patterns generated as an industry standard 8-bit ITU-R BT.656 stream
  • YCbCr 4:2:2 output pixels
  • Both PAL and NTSC (720 x 576i and 720 x 480i) formats supported
  • Choice of  6 different test pattern outputs
  • All signals synchronous with the pixel clock
  • Compatible with a wide range of video codec ICs
  • Tiny implementation size makes the core suitable for even the smallest FPGAs and CPLDs

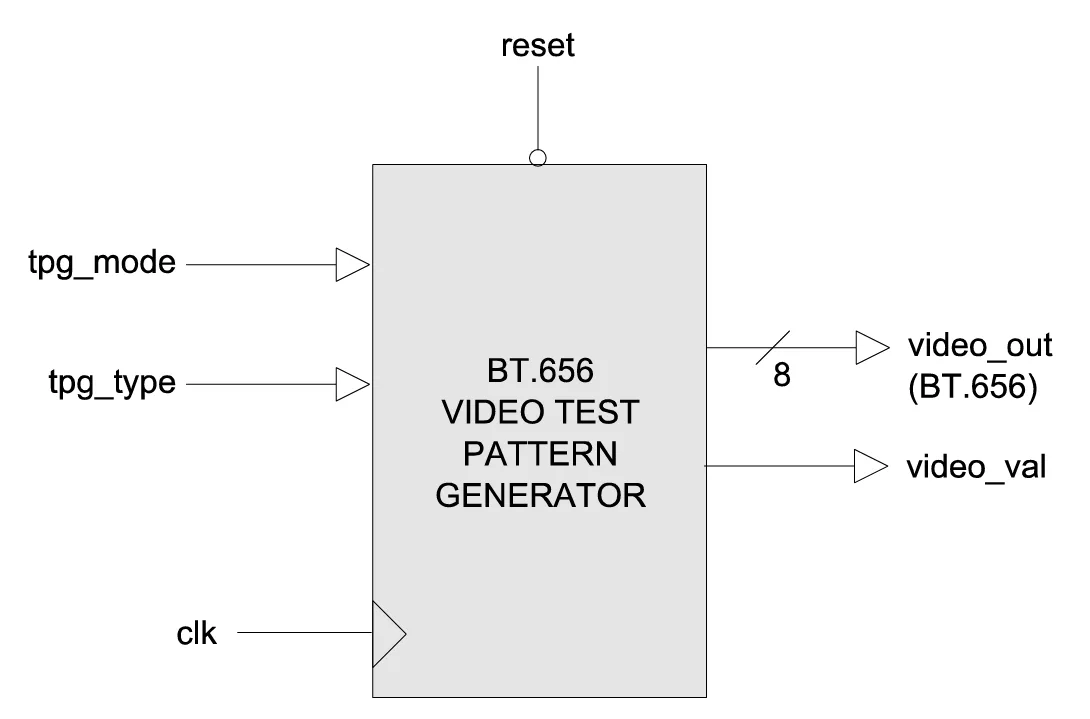

Block Diagram

BT656_TPG block diagram

Applications

  • Digital video testing and prototyping
  • Default output displays and simple 'screen savers'

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
BT656_TPG
Vendor
Zipcores Electronic Systems Engineering S.L.
Type
Silicon IP

Provider

Zipcores Electronic Systems Engineering S.L.
HQ: Spain
Zipcores design and sell IP Cores for implementation on all semiconductor devices. Founded in 2008, we are a team of experienced Engineers with a broad knowledge of digital hardware design spanning various fields. Our specific areas of expertise include Digital Video, DSP, Digital Modulation and high-speed interfaces. We offer a wide range of IP Cores for a variety of applications from basic building blocks to more complex systems. Our cores are supplied as clear readable VHDL or Verilog source-code and are synthesizable across multiple technologies - whether it be FPGA, ASIC or SoC.
