802.11a/b/g/n/ac Transceiver

NRF5800 is an integrated RF CMOS dual band 802.11a/b/g/n/ac transceiver.

Contact Provider Request Datasheet

Overview

NRF5800 is an integrated RF CMOS dual band 802.11a/b/g/n/ac transceiver. It incorporates RF and analog baseband receivers, analog baseband and RF transmitters, complete RF synthesizer with DCXO and TX/RX antenna switches for each band.

Key features

  • Dual band operation
  • Integrated PA - high TX output power
  • Integrated TX/RX antenna switch
  • Ultra Linear Transmitter
  • Self contained solution - no DPD needed
  • Low TX spur level for flat ch 1-12 TX output power (FCC req)
  • Low TX EVM vs antenna load impedance
  • Competitive RX and TX power consumption

Block Diagram

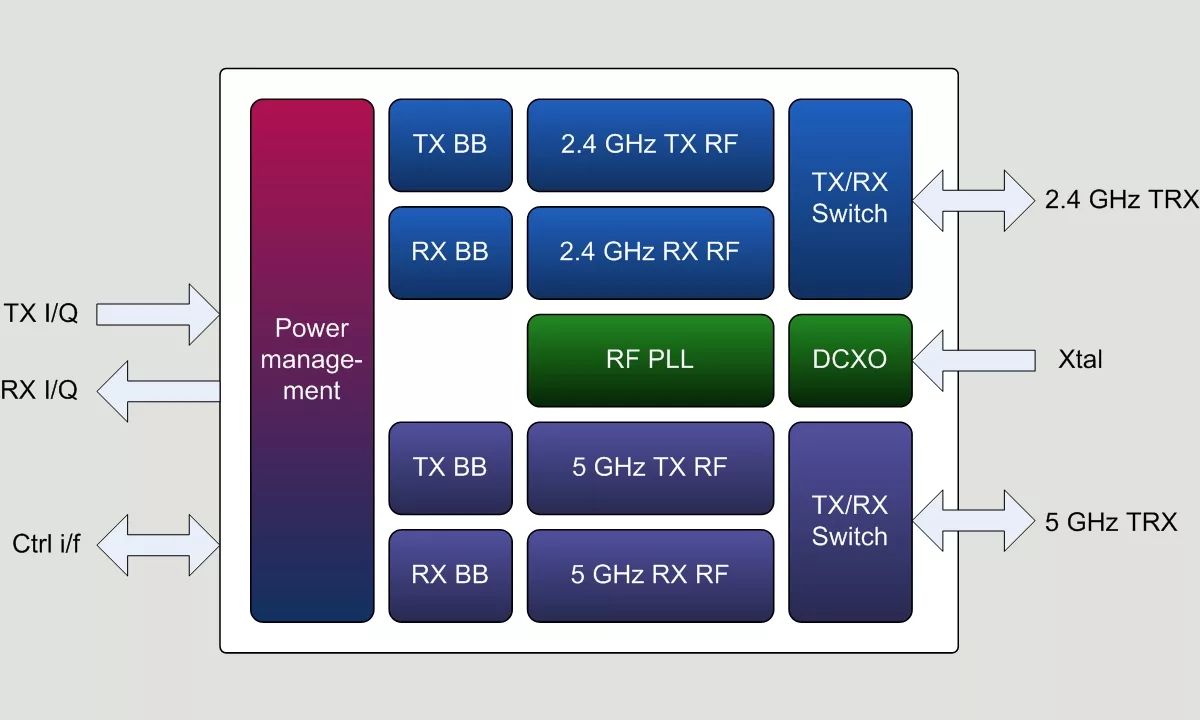

NRF5800 block diagram

Benefits

  • Pout low band (>4dB margin to IEEE EVM/mask spec):
    • 802.11b, 1-11mbps: +24 dBm
    • 802.11g, 54mbps: +20 dBm
    • 802.11n, MCS7: +20 dBm
    • 802.11n, (MCS9): +18 dBm
  • Pout high band (>4dB margin to IEEE EVM/mask spec):
    • 802.11a, 54mbps: +18 dBm
    • 802.11n, MCS7: +18 dBm
    • 802.11ac, MCS9: +16 dBm

Specifications

Identity

Part Number
NRF5800
Vendor
Nova RF AB
Type
Silicon IP

Provider

Nova RF AB
HQ: Sweden
Nova RF develops RF/Wireless IPs.
