3.6Kbit EEPROM IP with configuration 28p8w16bit

130GF_EEPROM_08 IP is a nonvolatile electrically erasable programmable read-only memory (EEPROM) with volume 3.6 Kbits, which is …

Contact Provider Request Datasheet
GlobalFoundries 130nm BCD Pre-Silicon View all specifications

Overview

130GF_EEPROM_08 IP is a nonvolatile electrically erasable programmable read-only memory (EEPROM) with volume 3.6 Kbits, which is organized as 28 pages of 8 words by 16 bit with single-bit output data and parallel write data. Data programming in EEPROM consists of 2 consecutive phases - erasing and writing. Data to be programmed in EEPROM are applied to D1<15:0>, D0<15:0>inputs. The erasing phase is performed by setting BUSY signal to “1” while the ERASE signal is also at “1”. The writing phase is performed by setting BUSY signal to “1” while the WRITE signal is also at “1”. Data D1<15:0>, D0<15:0>, page address ADR_P<4:0> and word address in page ADR_W<2:0> must not be changed throughout the whole cycle of writing (i.e. while HV_ON = “1”). Data reading is performed using the SAMPLE signal.

Memory is optimized for usage in the industrial and commercial applications, requiring low power consumption and supply voltage.

Total area: 0.12 mm2.

ELECTRICAL CHARACTERISTICS

Parameter

Symbol

Conditions

Value



Units

min

typ.

max

Supply voltage

VDD

Write mode









Read mode









Operating temperature range

Tj

-

-40

+27

+125

°C

Clock frequency for internal voltage doubler

FCLK_VDD2



-



-



0.5



-



MHz

Clock frequency for high voltage pump generator

FCLK_HV



-



-



1



-



MHz

Reference current

IREF

receiving device: pMOSFET

-

50

-

nA

Access time

tACC

1.2V ≤ VDD ≤ 1.65V

-

0.3

0.4





us

0.9V ≤ VDD < 1.2V

-

0.3

0.5

0.8V ≤ VDD < 0.9V

-

0.3

0.6

VDD = 0.7V

-

0.3

-

VDD = 0.6V

-

0.7

-

Active pulse width of BUSY signal

TPRG

-

1

2

4

ms

Current consumption in read mode*

IREAD

FSAMPLE = 0.5 MHz

DCSAMPLE = 75%

-

-

0.90

2.60







uA

VDD = 1.0 V

-

0.75

1.70

VDD = 0.9 V

-

0.70

1.60

VDD = 0.8 V

-

0.55

1.40

VDD = 0.7 V

-

0.50

-

VDD = 0.6 V

-

0.45

-

Average current consumption in program mode

IPROG_AVG



-



-



9



23



uA

Peak current consumption in program mode

IPROG_PEAK



-



-



27



41



uA

High Level Input Voltage

VIH

For digital inputs

0.85VDD

-

VDD

V

Low Level Input Voltage

VIL

-

-

0.15

V

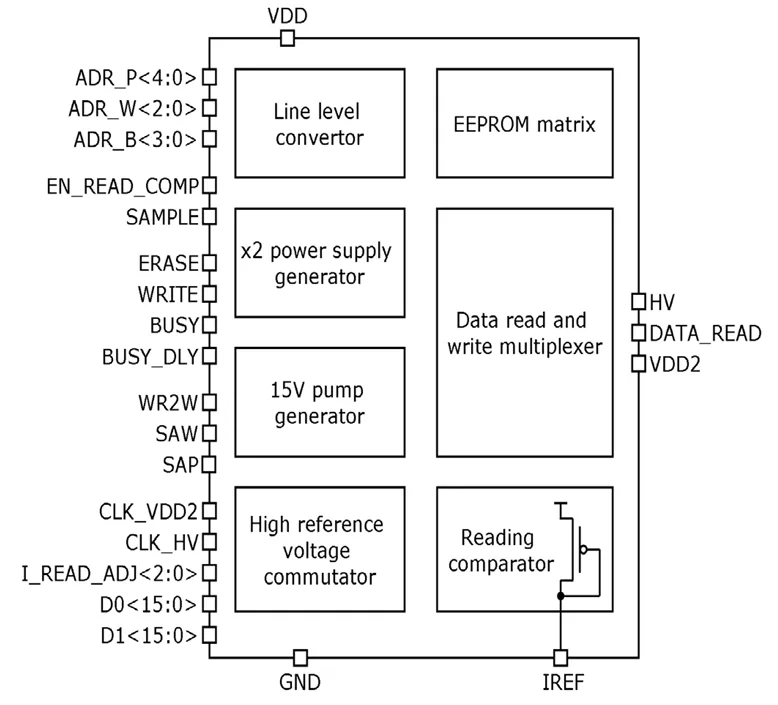

Block Diagram

130GF_EEPROM_08 block diagram

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Silicon Options

Foundry Node Process Maturity
GlobalFoundries 130nm BCD Pre-Silicon

Specifications

Identity

Part Number
130GF_EEPROM_08
Vendor
NTLab
Type
Silicon IP

Provider

NTLab
HQ: Lithuania
