24-bit audio inductor-less class-D DAC with efficiency and ultra-low latency capability
The mDAC115-CDA1-D.01 is a mixed (analog and digital) Class-D Audio DAC dedicated to head-phone market featuring high efficiency …
Overview
The mDAC115-CDA1-D.01 is a mixed (analog and digital) Class-D Audio DAC dedicated to head-phone market featuring high efficiency performance.
Key features
- Provide a top-tier performances audio DAC to fabless and IC companies willing to integrate audio features directly in their product and not using external IC
- High energy efficiency, ow power consumption,
- Ultra low latency for Active Noise Cancellation
- Embedded low noise voltage regulator for best resilience to power supply noise
- Inductor-less architecture for Low BoM costs and advanced system integration

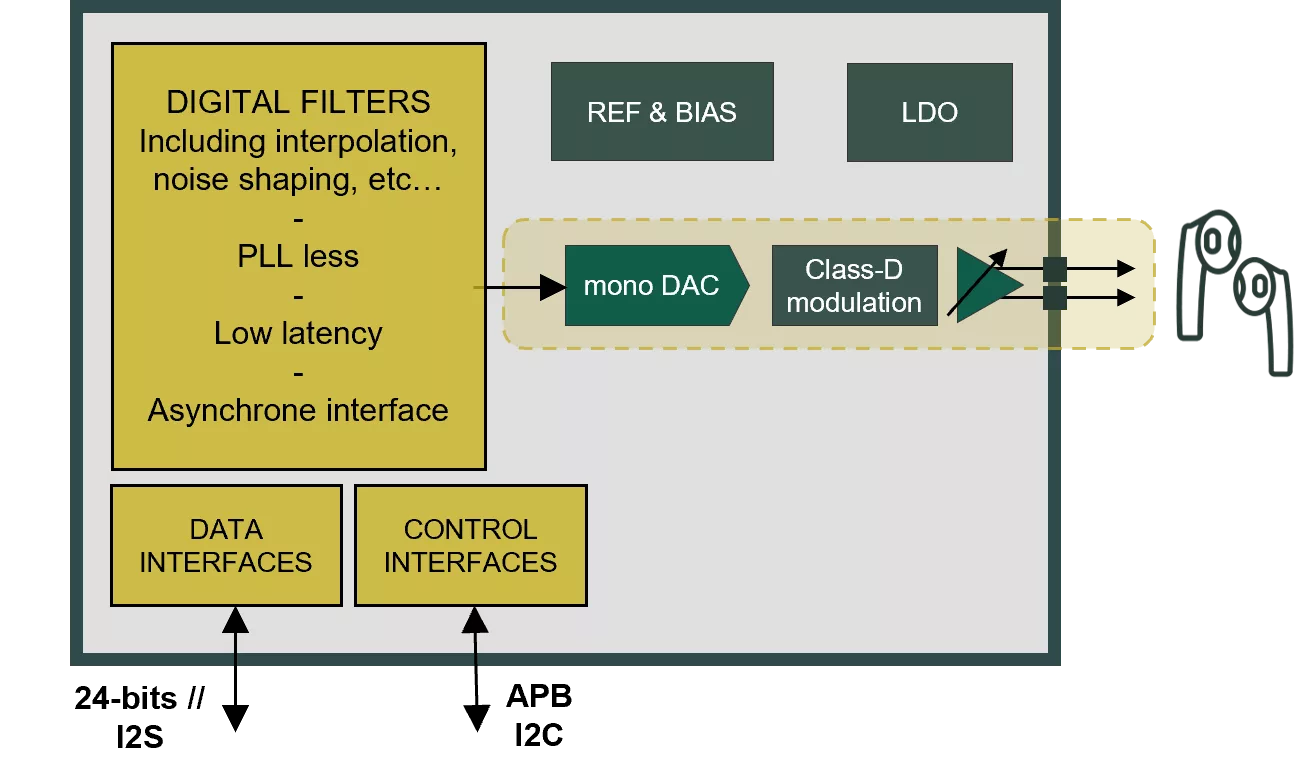

Block Diagram
mDAC115-CDA1-D.01_TSMC_12_FFCp block diagram
Files
Note: some files may require an NDA depending on provider policy.
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| TSMC | 12nm | FFC | Pre-Silicon |
Specifications
Identity
Part Number
mDAC115-CDA1-D.01_TSMC_12_FFCp
Vendor
Dolphin Semiconductor
Type
Silicon IP
Analog
Resolution bits
24 Bit
Provider
Dolphin Semiconductor
HQ:
France
Dolphin Semiconductor is a leading provider of semiconductor IP solutions, specializing in mixed signal IP design targeting markets such as Industrial, High-Performance Computing, Consumer Electronics, IoT and Automotive. Dolphin Semiconductor cutting-edge technology IPs in power management, high-quality audio, power metering, and design safety/robustness, allow their customers to accelerate design cycles, foster faster time-to-market and build products that address the challenges of any industry and support a more sustainable world. With a customer-centric approach, Dolphin Semiconductor provides exceptional support for successful project outcomes.
