12 Bit 20 MS/s Pipeline ADC on XFAB XH035

This pipelined ADC can be applied for up to 20MSps sampling frequencies.

Overview

This pipelined ADC can be applied for up to 20MSps sampling frequencies. By using interleaved switched-capacitor circuitries a CLK signal with half the sampling rate needs to be applied.

This ADC is built as a single-ended architecture and is designed to convert input signals from 0.5 – 2.3V at 3.3V supply voltage with up to 10 MHz input bandwidth with 12 bits resolution.

The ADC IP includes reference voltage generation with buffers and optional high-precision bandgap reference. The accuracy of the ADC is ensured by one-time-trimming of the reference voltages. Power-down mode is available.

The ADC is silicon proven using the XFAB XH035 process. Measurement results and samples are available.

Fraunhofer IIS provides a detailed documentation and
support for the IP integration. Modifications, extensions and technology ports of the IP are available on request

Key features

  • Resolution: 12 bit
  • Conversion rate: up to 20 MS/s
  • Power consumption: 125 mW @ 3.3 V
  • Integral non-linearity: +/- 2.0 LSB
  • Diff. non-linearity: +/- 0.7 LSB
  • Supply voltage: 3.0 V – 5.0 V
  • Input voltage range: 0.5 - 2.3 V
  • Operating temperature: 0 – 85 °C

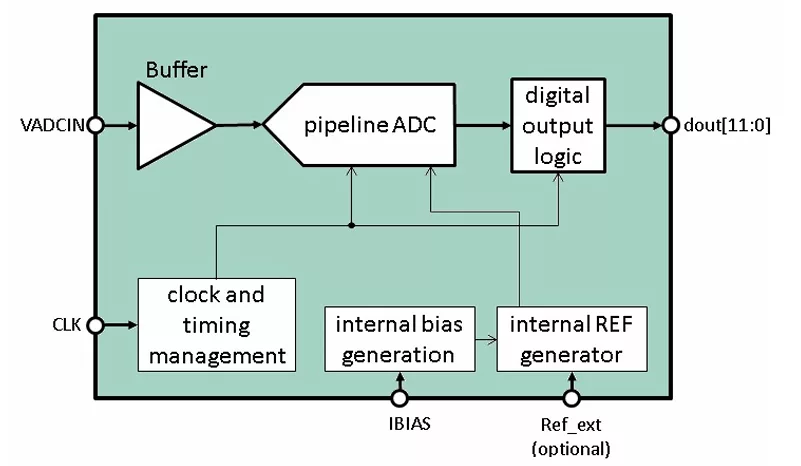

Block Diagram

Benefits

  • Accelerated design service
  • Design safety (first-time-right)
  • Customer-specific flexible IPs
  • Automated DfR and verification

Applications

  • IoT
  • Medical
  • Consumer
  • Automotive (on request)
  • Industrial (on request)

What’s Included?

  • GDSII data
  • Simulation model
  • Documentation
  • Integration and customizing support

Files

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
ADC12b020MS350nm
Vendor
Fraunhofer Institute Integrated Circuits and Systems (IIS)

Provider

Fraunhofer Institute Integrated Circuits and Systems (IIS)
HQ: Germany
The Fraunhofer Institute for Integrated Circuits (IIS) offers core components for ASIC and FPGA solutions. The cores are developed by Fraunhofer IIS in Erlangen, Germany and selected partners. Over 25 years of system and design know-how, analog and digital design experience, and the needs of our customers have influenced the methodology to develop these cores. Each core has been verified with sophisticated test procedures at Fraunhofer IIS before it is offered to the customers. As a result, the cores are of high quality and proven technology. Many components are parameterizable and allow the designer to tailor each component to the needs of the application. Therefore, using our components saves lots of design and verification effort.
