10mA to 265mA Linear Li-Ion Battery Charger - GlobalFoundries - 0.130um BCD

This IP performs a controlled charging process of a Li-Ion battery and provides a regulated voltage to the system.

Contact Provider Request Datasheet
GlobalFoundries 130nm BCD View all specifications

Overview

This IP performs a controlled charging process of a Li-Ion battery and provides a regulated voltage to the system.

The charging current can be digitally adjusted from 10mA up to 265mA.

The current provided to the system can also be digitally adjusted up to 440mA.

A reverse current limiter, from the battery to the system, of 300mA is also implemented.

This IP also features a dynamic power management (DPM) which automatically reduces the charging current when the limited available current at the input may cause the system voltage to fall.

This IP also has a built-in bulk voltage control, which automatically selects the substrate voltage to prevent damage to the power circuit.

Key features

  • 10mA to 265mA charging current
  • 3.3V to 4.35V termination voltage
  • Power and charging status indicators
  • Integrated power FETs
  • Battery reverse current limiter
  • Dynamic power management
  • Charge status monitor
  • UVLO, Thermal Shutdown, NTC.
  • Area 0.5mm²

Block Diagram

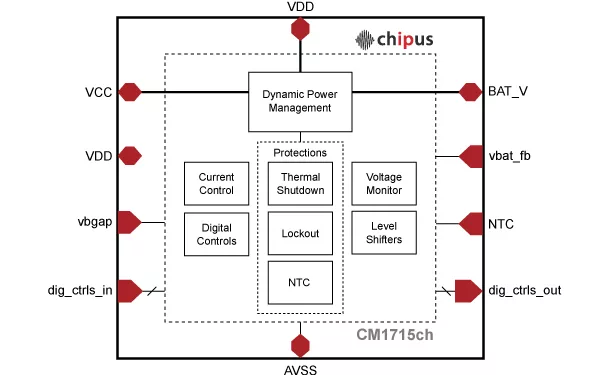

CM1715ch block diagram

Applications

  • Portable devices SoC/PMIC
  • Wearables

What’s Included?

  • Integration Guidelines
  • Flat GDS Database
  • LVS Netlist
  • HDL Model
  • Datasheet
