Vendor: Certus Semiconductor Category: High-Speed

0.9V SLVS Transceiver in TSMC 22nm

A 200Mbps 0.9V SLVS transceiver solution.

Contact Provider Request Datasheet
TSMC 28nm View all specifications

Overview

A 200Mbps 0.9V SLVS transceiver solution.

This SLVS I/O Library, implemented in TSMC 22nm with an 11P7M_5X1Z UT-AlRDL metal stack, provides a 0.9V differential transceiver optimized for low-power, high-speed operation. Supporting data rates up to 200 Mbps and compliant with JESD8-13 SLVS standards, the library features strong power supply rejection, integrated 100 on-die termination, and robust 2 kV HBM / 500 V CDM ESD protection. The cell set includes the SLVS TX/RX, companion VDD and VSS supply cells, and transition cells for seamless integration with foundry I/O. With wide temperature coverage from -40 °C to +125 °C, bias-sharing via the BIASEN pin for reduced static power, and proven padring construction guidelines, this library delivers a reliable and scalable differential interface solution for advanced SoCs .

Operating Conditions

Parameter Value
Devices 1.2V Thin Oxides
BEOL 1P7M2T
Core VDD 1.2V
Tj -40C to 150C
ESD 2kV HBM, 500V CDM
Latchup 200mA

Cell Size

Cell Cell Size
SLVS 112x80.8um
VDD 56x80.8um
VSS 56x80.8um
Transition 5x80.8um

Library Cell Summary

Cell Type Feature
SLVS 1.2V 200MHz Transceiver
VDD 1.2V Power
VSS I/O and substrate ground
Transition Transition cell

Key features

  • 200MHz differential I/O.
  • Designed for rejection of supply/ground noise.
  • Small-area 2kV HBM protection.
  • Input and output enable pins.
  • On-Die Termination resistor

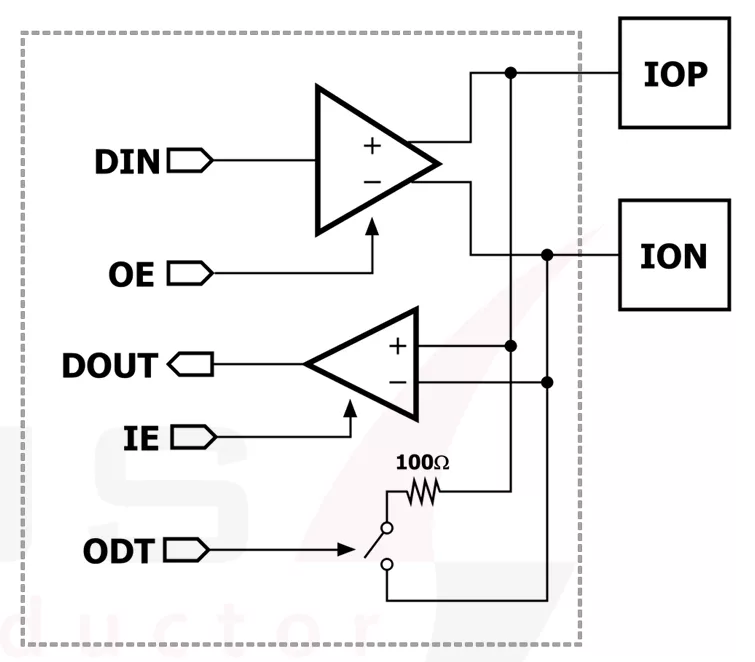

Block Diagram

TA22 block diagram

Silicon Options

Foundry Node Process Maturity
TSMC 28nm 28nm 280 nm —

Specifications

Identity

Part Number
TA22
Vendor
Certus Semiconductor
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.
