USB Type-C Authentication IP

Siliconch SCAE10IP is a USB Type-C Power Delivery 3.0 compliant Authentication IP which is based on the latest USB Type-C Authent…

Contact Provider Request Datasheet

Overview

Siliconch SCAE10IP is a USB Type-C Power Delivery 3.0 compliant Authentication IP which is based on the latest USB Type-C Authentication specification revision 1.0. The SCAE10IP features hardware accelerated NIST compliant crypto blocks and is a fully functional standalone Authentication engine, and features a complete asymmetric (public/private) key based Elliptical Cryptographic Digital Signature Algorithm (ECDSA) solution. Typical applications include USB-C cables, power adapters, hubs, smartphones, power banks and flash drives. This IP enables restriction on the usage of uncertified USB-C devices, accessories and cables protecting the host system. The SCAE10IP includes various defensive mechanisms to void any logical attacks such as power, timing and side-channel.

Key features

  • Complete stand-alone hardware Authentication engine
  • ASN X.509 v3 certificate based client Authentication
  • Strong protection using asymmetric Authentication protocol compliant to NIST- FIPS-184-4 with P256 secp256r1 elliptic curve
  • Configurable as Authentication Initiator or Responder depending on the use case being a host or device respectively
  • Support of defensive mechanisms to avoid attacks against power (Simple Power Attack (SPA) / Differential Power Attack (DPA)), timing and side-channel attacks
  • True-Random Number Generator (TRNG) 256-bit full seed generator with an entropy value compliant to NIST SP800-90B
  • Pseudo-Random Number Generator (PRNG) compliant to NIST SP800-90A
  • Interface support for DMA access to accelerate block data transfer
  • Re-authentication supported
  • Built-in SHA-256 hardware block
  • ECC over GF(p) signature generation and verification (ECDSA)
  • Centralized Crypto controller
  • Modulo arithmetic accelerator block for performing scalar prime field operations
  • Highly optimized logic with low gate count and supports frequencies up to 50 MHz
  • Easy integration support of Authentication IP into end solutions

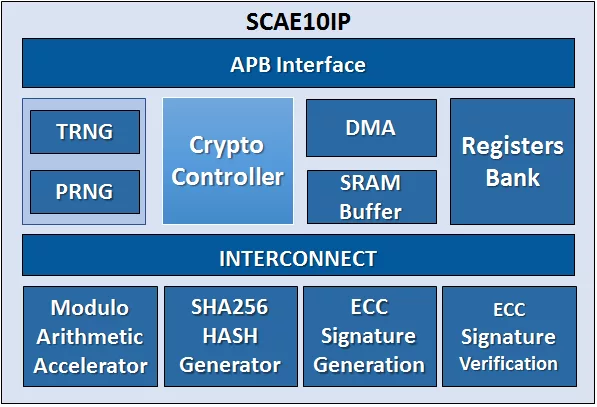

Block Diagram

SCAE10IP block diagram

Benefits

  • Lowest Gate count
  • Highest Performance
  • Low Power

Applications

  • USB Type-C Power Delivery
  • USB Type-C Datapath

What’s Included?

  • Fully Synthesizable Verilog RTL source code
  • Firmware source code
  • ASIC Synthesis constraints and scripts files
  • FPGA Synthesis constraints and scripts files
  • FPGA Development platform kit
  • Complete USB Type-C Authentication IP in GDSII including Analog TRNG
  • UVM based Verification Environment and test sequences
  • User Manual, Programming guide and Verification documents

Video

SiliConch USB Type-C Authentication IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
SCAE10IP
Vendor
SiliConch Systems Private Limited

Provider

SiliConch Systems Private Limited
HQ: India
Mixed-signal IP provider company - focusing on delivering Mixed-signal solutions in Power Management and Hi-speed IOs
Contact SiliConch Systems Private Limited
