Vendor: NTLab Category: Smartcard

UHF RFID EPC Gen2V2 physical interface

180SMIC_G2PHY_01 is an IP intended for use in passive UHF transponder applications.

Contact Provider Request Datasheet
SMIC 180nm G Silicon Proven View all specifications

Overview

180SMIC_G2PHY_01 is an IP intended for use in passive UHF transponder applications. IP derives its operating power from an RF electromagnetic field generated by a reader, which is received and rectified. The IP contains two UHFAp and UHFAn antenna pads. The IP sends the answer back to the reader using a backscatter modulation technique. 180SMIC_G2PHY_01 provides a fast and flexible anti-collision protocol based on internal random number generator according to EPC standard. The IP supports all EPC C1G2 V2 mandatory commands. Short-time memory block provides 4-bit storage with persistence values according to EPC C1G2 V2 standard. The operation of the IP-block must be carried out in conjunction with external non-volatile memory. The ability to access external memory for a third-party user (for example, through the HF NFC interface) is implemented according to the "First in and First Served" principle.

Key features

  • SMIC 180nm EEPROM technology
  • Operating temperature range -40…+85 °C
  • Operating frequency 860 - 960 MHz
  • EPC Class 1 Generation 2 V2 compliant
  • Two pads RF operation functionality
  • Support Range Reduction
  • Small L-shaped area (0.196mm2)

Block Diagram

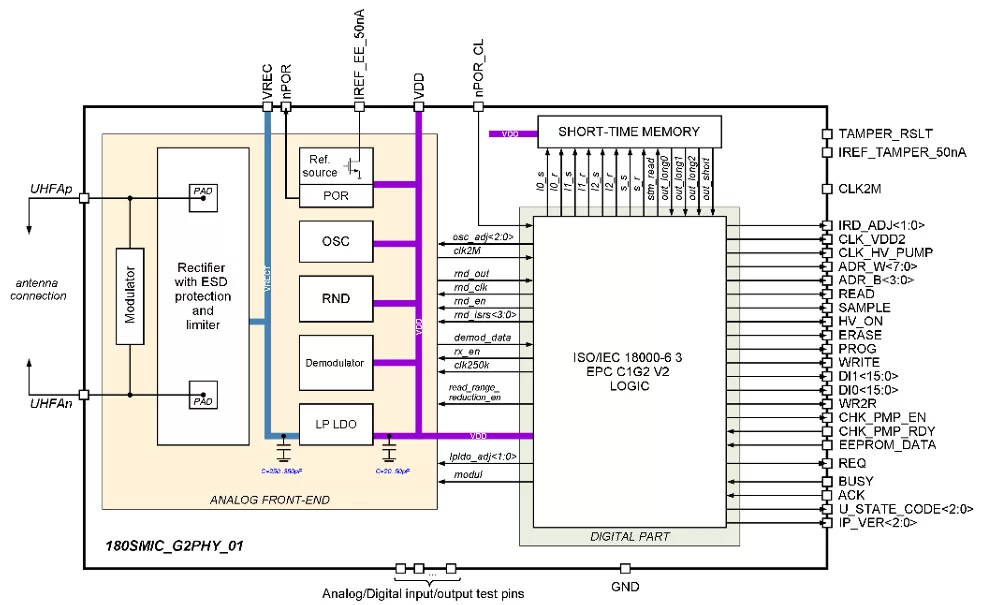

180SMIC_G2PHY_01 block diagram

Applications

  • Protection of goods against counterfeiting
  • Supply chain management and logistics
  • Airline baggage handling
  • Mail and parcel delivery
  • Automobile billing systems
  • Asset tagging

What’s Included?

  • Datasheet
  • Layout View (GDSII)
  • Evaluation kit based on packaged IC
  • Characterization Report
  • Behavioral Model
  • SPICE netlist (.cdl)
  • Integration Support

Silicon Options

Foundry Node Process Maturity
SMIC 180nm G Silicon Proven
