Single Rail SRAM GLOBALFOUNDRIES 22FDX
Ultra-low voltage logic designs using adaptive body biasing demand dense SRAM solutions which fully integrate in the ABB aware im…
Overview
Ultra-low voltage logic designs using adaptive body biasing demand dense SRAM solutions which fully integrate in the ABB aware implementation and sign-off flow of the Racyics® ABX Platform solution. The Racyics® Single Rail SRAM supports ultra-low voltage operation down to 0.55 V where logic designs with Minimum-Energy-Point are implemented.
Key features
- Single port SRAM compiler based on Racyics® R188 logic memory cell with dual-well architecture
- Supply voltage 0.55 V to 0.8 V enabled with Racyics® ABX
- Direct interfacing to ULV Racyics® ABX digital standard cell domains without additional level shifters
- Full set of characterization corners for -40 °C to 150 °C temperature range for Racyics® ABX aware timing and power sign-off
- Full statistical LVF characterization for low voltage operation

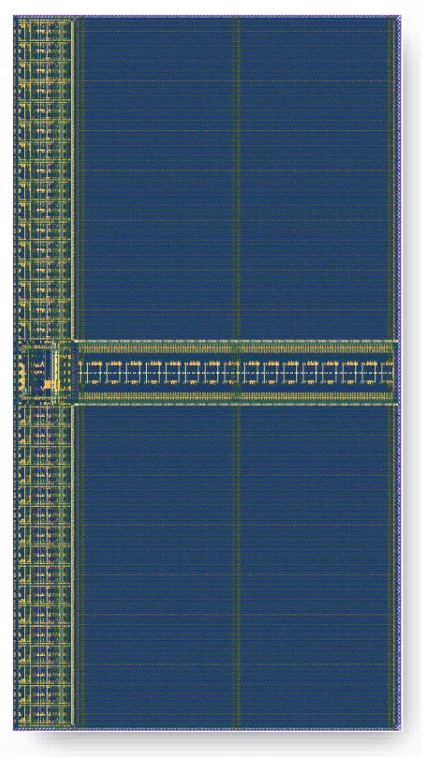

Block Diagram
ri_sram_gf22fdx_RS block diagram
What’s Included?
- Verilog simulation models
- .lib /.db timing (NLDM, CCS, LVF) and power models
- .lef layout abstract views
- NDM and Milkyway libraries
- GDSII layouts
- LVS netlist
Files
Note: some files may require an NDA depending on provider policy.
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| GlobalFoundries | 22nm | FDX | — |
Specifications
Identity
Part Number
ri_sram_gf22fdx_RS
Vendor
Racyics GmbH
Provider
Racyics GmbH
HQ:
Germany
Racyics is an experienced System-on-Chip design service provider with focus on advanced semiconductor nodes. We offer our customers a wide range of design services including custom IP and turnkey SoC solutions.
