Vendor: VeriSyno Microelectronics Co., Ltd. Category: Root Of Trust

Security IP Solution

VeriSyno provides a flexible and configurable security IP solution, which includes common symmetric encryption algorithms, random…

Contact Provider Request Datasheet

Overview

VeriSyno provides a flexible and configurable security IP solution, which includes common symmetric encryption algorithms, random number generators, key management, etc. At the same time, specific encryption algorithms and hash function models can be configured according to different application scenarios and security requirements. This solution can be widely applied to networked devices that require safety protection, including but not limited to cars, Ethernet, storage devices, intelligent instruments, etc., intending to provide high-performance and highly secure password security solutions for the era of the Internet of Things.

Key features

  • Symmetric Algorithms
    • AES based: AES-CBC/AES-CTR/AES-ECB/AES-OFB/AES-CFB/AES-GCM/AES-XTS
    • DES based: DES/3-DES
    • Hash: SHA-1/SHA-2/SHA-3
    • SM4 (GB/T 32907-2016)
    • Whirlpool
  • Asymmetric Algorithms
    • RSA/ECC/ECDSA
    • SM2 (GB/T 35276-2017)
  • Random Number Generation
    • True Random Number Generator (TRNG)
    • Pseudo Random Number Generator (PRNG)
  • Advantages
    • Integration Ease: Supports AHB/AXI interfaces for easy integration into various systems.
    • Flexibility: Offers a wide selection of programmable ciphering modes, providing a high level of flexibility to adapt to different requirements.
    • Compliance: Satisfies the mode requirements of E-safety vehicle intrusion protected applications (EVITA).

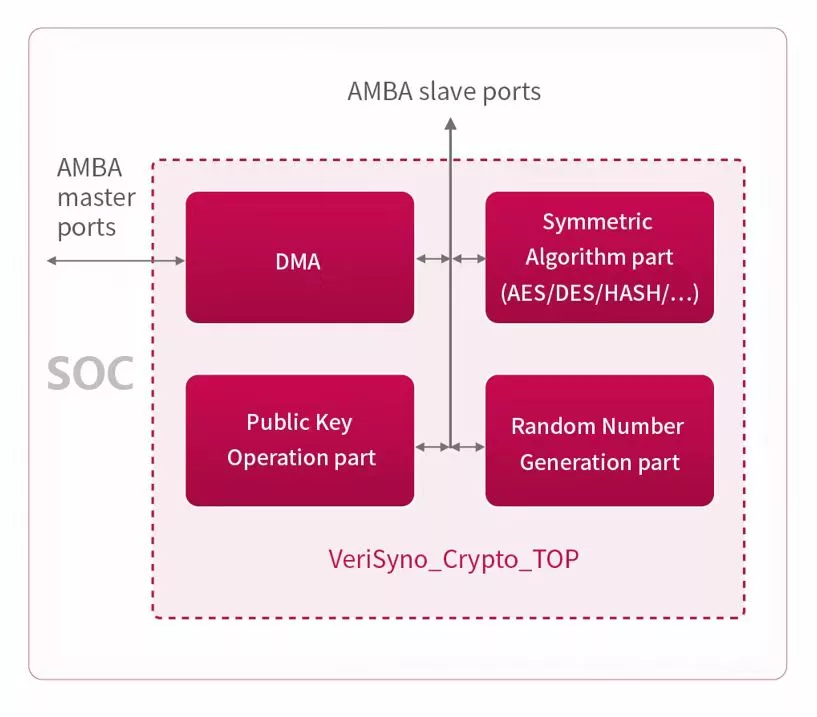

Block Diagram

Security IP Solution block diagram

Specifications

Identity

Part Number
Security IP Solution
Vendor
VeriSyno Microelectronics Co., Ltd.
Type
Silicon IP

Provider

VeriSyno Microelectronics Co., Ltd.
HQ: The People's Republic of China
VeriSyno Microelectronics Co., Ltd. is a national high-tech enterprise dedicated to the research and development of semiconductor IPs. The company’s main products include mixed-signal high-speed interface IPs such as USB, HDMI, DDR, MIPI, PCIe, SATA, and various analog IPs such as ADC, DAC, PLL, LVDS, as well as independently developed PSRAM interface IO solutions and vMAC series IPs. As one of the important semiconductor IP suppliers in China, in active collaboration with local foundries, VeriSyno has long been committed to the porting of those mature interface IPs to processes such as 22/28/40/55nm, to ensure secure and reliable supply of domestic IPs. The company’s diversified IP products have been widely used in industries such as industrial, medical, AI, and IoT. VeriSyno was established in September 2018 and is headquartered in Hefei, Anhui, with branch offices in Beijing, Shanghai, and Shenzhen.
Contact VeriSyno Microelectronics Co., Ltd.

Learn more about Root Of Trust IP core

Root of Trust: A Security Essential for Cyber Defense

Imagine a datacenter powering critical cloud services, silently compromised by a tampered chip inserted during manufacturing. In most cases, the malware would be practically impossible to remove and could persist across formats/reinstalls !

Why Hardware Root of Trust Needs Anti-Tampering Design

The hardware root of trust (HRoT) provides the trust base (root key), hardware identifier (UID), hardware unique key (HUK), and entropy required for the secure operation of the entire chip and therefore is often the focus of hacker attacks. If the design can’t effectively resist attacks, hackers can easily obtain the secrets of the entire chip. Attackers can use the secrets to crack identity authentication and data encryption and steal product design know-how, causing application security problems.

Frequently asked questions about Root of Trust IP cores

What is Security IP Solution?

Security IP Solution is a Root Of Trust IP core from VeriSyno Microelectronics Co., Ltd. listed on Semi IP Hub.

How should engineers evaluate this Root Of Trust?

Engineers should review the overview, key features, supported foundries and nodes, maturity, deliverables, and provider information before shortlisting this Root Of Trust IP.

Can this semiconductor IP be compared with similar products?

Yes. Buyers can compare this product with similar semiconductor IP cores or IP families based on category, provider, process options, and structured technical specifications.

×
