Scalable Ultra-High Throughput Lossy and Lossless JPEG 2000 Encoder

The UHT-JPEG2K-E core is a scalable, ultra-high throughput, hardware JPEG 2000 encoder, designed to provide all the power needed in modern image and Ultra HD video compression applications that have to cope with massive pixel rates and resolutions. This IP core supports lossy and numerically lossless encoding of 4:4:4, 4:2:2, 4:2:0 and 4:0:0 (grayscale) images or video streams with up to 16-bit per component color depth. The UHT-JPEG2K-E is available for ASIC or AMD-Xilinx, Efinix, Intel, Lattice and Microchip FPGA and SoC based designs.

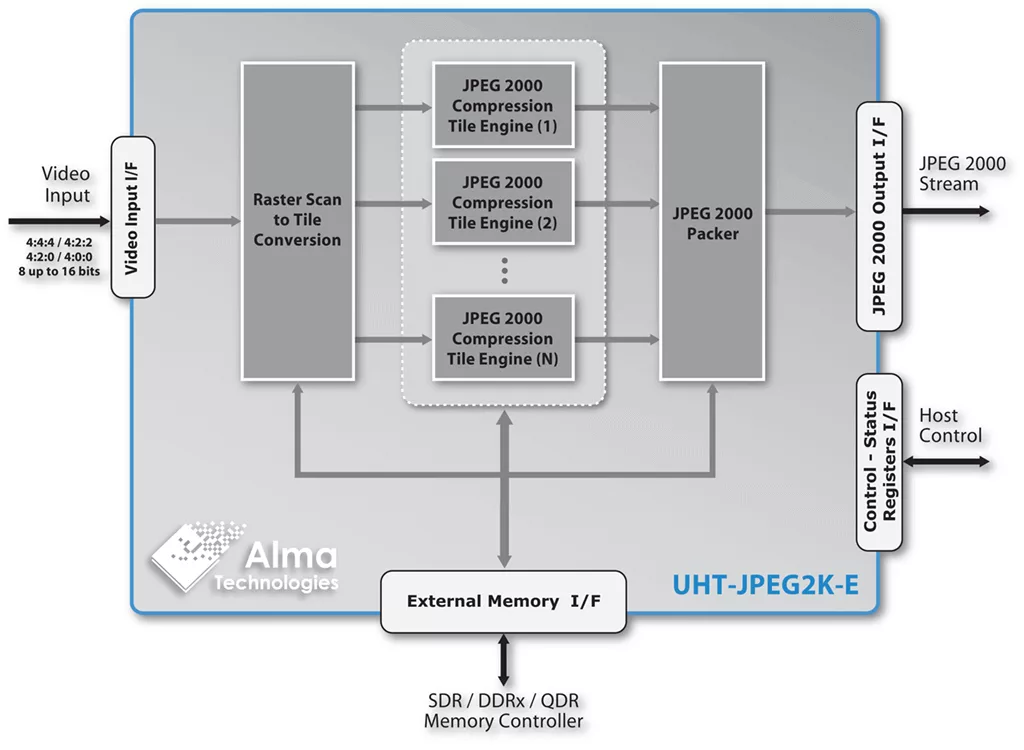

Using multiple internal compression engines, the UHT-JPEG2K-E offers the needed performance through its scalable parallel architecture. Each input image or video frame is split internally into pieces and each piece is allocated to one of the multiple internal compression engines. The encoded output streams of the compression engines are combined in a single output stream. These operations are done in a way that is transparent to the system utilizing the IP, abstracting all the parallelization complexity from the rest SoC components. The number of internal compression engines is configurable before synthesis, adapting to the implementation technology speed, and non-critical resources are shared between the multiple compression engines.

The UHT-JPEG2K-E IP Core is very easy to use and integrate in a system. A single uncompressed data input interface is used to accept raster scan pixels, and a single JPEG 2000 compliant byte stream is produced to the output. The operation of the core is completely standalone, without needing any host CPU or GPU power. The JPEG 2000 output byte stream can be decoded - as is - by any corresponding ISO/IEC 15444-1 JPEG 2000 compliant decoder.

The UHT-JPEG2K-E core features simple, fully controllable and FIFO-like, streaming input and output interfaces. Being carefully designed and rigorously verified, the UHT-JPEG2K-E is a reliable, easy-to-use and integrate IP providing a best value solution for your FPGA or ASIC design.

• ISO/IEC 15444-1 Compliant and Standalone Operation
  • Full compliance to the ISO/IEC 15444-1 JPEG 2000 specification
  • 4:4:4, 4:2:2, 4:2:0 and 4:0:0 encoding
  • 8 up to 16 bits sample depth encoding
  • Up to 65535 x 65535 image resolution
  • Up to 8192 x 8192 tile resolution
  • Lossless or lossy compression
  • Advanced rate control engine
  • ISO/IEC 15444-1 compliant code stream (JPC) or file (JP2) JPEG 2000 output
  • CPU-less, complete and standalone operation
• Advanced JPEG 2000 Implementation
  • Ultra-high throughput in medium-end silicon
  • Superior compression and video quality from ED to Ultra HD resolutions
  • CBR image/video encoding mode
    • Rate control option with programmable requested output compression ratios
    • On-the-fly nominal output compression ratios changes are supported
  • Medium requirements in external memory bandwidth
  • Flexible external memory interface
    • Independent of external memory type
    • Tolerant to latencies
    • Allows for shared memory access
    • Can optionally operate on independent clock domain
• Easy Implementation and Verification
  • Extensive documentation
  • Bit Accurate Model (BAM) with optional Test Vector generation functionality
  • Self-checking testbench environment
  • Sample BAM scripts
  • Synthesis scripts
  • Simulation scripts
  • Place & Route scripts for FPGAs
• Trouble-Free Technology Map and Implementation
  • Fully portable HDL source code
  • No internal tri-states
  • Strictly positive edge triggered design
  • D-type only Flip-Flops
  • Fully synchronous operation
  • Safe CDC transfers
  • No need for special timing constraints
    • No false or multi-cycle paths within the same clock domain
    • No CDC transfers that need to be constrained
    • No specially constrained timing paths

• Clear-text RTL sources for ASIC designs, or pre-synthesized and verified Netlist for FPGA and SoC devices
• Release Notes, Design Specification and Integration Manual documents
• Bit Accurate Model (BAM) and test vector generation binaries, including sample scripts
• Pre-compiled RTL simulation model and gate-level simulation netlist for the FPGA Netlist license
• Self-checking testbench environment sources, including sample BAM generated test cases
• Simulation and sample Synthesis (for ASICs) or Place & Route (for FPGAs) scripts
