Vendor:
Secure-IC
Category:
Public Key
PKC Multi Hardware Accelerator IP
The PKC Multi hardware accelerator is a secure connection engine that can be used to offload the compute intensive Public Key ope…
Overview
The PKC Multi hardware accelerator is a secure connection engine that can be used to offload the compute intensive Public Key operations (Diffie-Hellman Key Exchange, Signature Generation and Verification), widely used for High-performance TLS Handshake.
It combines a load dispatcher and a configurable amount of instances of the Public Key Crypto Engine (SCZ_IP_PKC) benefiting from all features supported (i.e., RSA/DH/DHE and ECDSA/ECDH/ECDHE/X.25519/X.448 and more). The efficient dispatching to several dozens of SCZ_IP_PKC instances helps reach maximum system performance.
This IP is made of a core and optional modules aiming at connecting the core to standard interfaces (PCIe, DMA, AXI bus). In addition, device drivers have an asynchronous API (or non-blocking API) which is integrated in OpenSSL Async.
Implementation aspects
The PKC Multi hardware accelerator IP core is easily portable to ASIC and FPGA. It supports a wide range of applications on various technologies. The unique architecture offers a high level of scalability, enabling a trade-off between throughput, area and latency. For more detailed information about our Public Key Crypto Engine (SCZ_IP_PKC), please see our dedicated product sheet.
Key features
- Scalable architecture
- OpenSSL integration (optional)
- Custom operations possible on request
- High performance on off-the-shelf FPGA
- Plug'n Play integration with PCIe (e.g., Xilinx Alveo board)
- ASIC and FPGA (incl. UltraScale+ & Versal)
- Wide variety of crypto algorithms supported:
- RSA with and without CRT
- Elliptic Curve Cryptography(ECC)
- Diffie-Hellman (D-H and ECDH) Key Exchange
- Digital Signature Algorithm (DSA) & Elliptic Curve
- Digital Signature Algorithm (ECDSA, EC-KCDSA & EdDSA)
- X.25519/X.448
- SM2
- Any other crypto algorithm can be supported

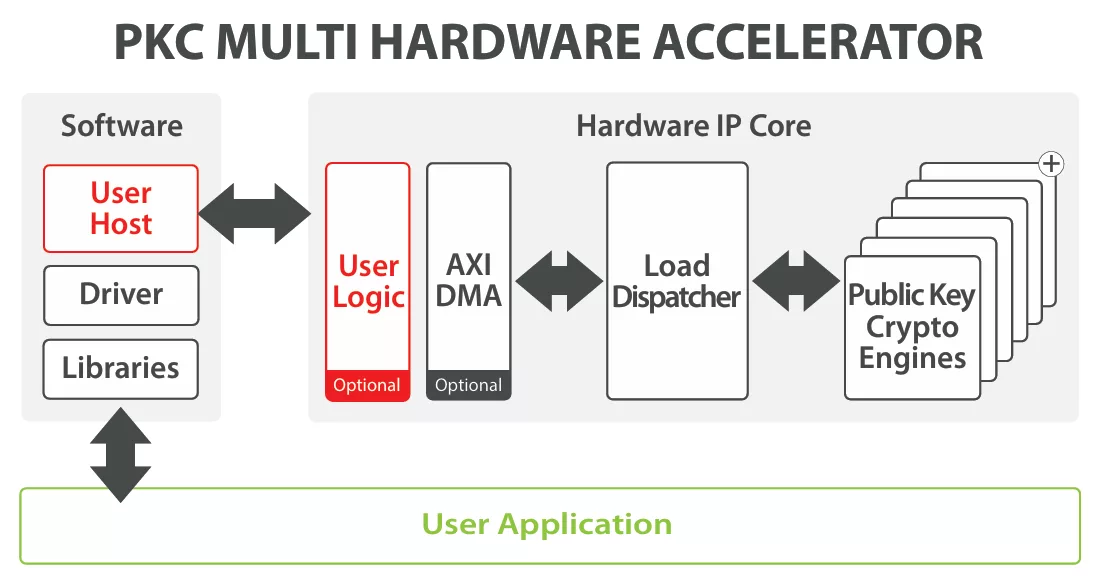

Block Diagram
SCZ_IP_PKC_Multi block diagram
Applications
- Cloud computing
- Data center
- HSM
- Firewall
- IKE-TLS/SSL
- connection engine
- Blockchain transactions
What’s Included?
- Netlist or RTL
- SW drivers (Linux)
- Scripts for synthesis & STA
- Self-checking RTL test-bench based on referenced vectors
- Documentation
Files
Note: some files may require an NDA depending on provider policy.
Specifications
Identity
Part Number
SCZ_IP_PKC_Multi
Vendor
Secure-IC
Provider
Secure-IC
HQ:
France
With presence and customers across 5 continents, Secure-IC is the rising leader and the only global provider of end-to-end cybersecurity solutions for embedded systems and connected objects. Driven by a unique approach called PESC (Protect, Evaluate, Service & Certify), Secure-IC positions itself as a partner to support its clients throughout and beyond the IC design process. Relying on innovation and research activities, Secure-IC provides Silicon-proven and cutting-edge protection technologies, integrated Secure Elements and security evaluation platforms to reach compliance with the highest level of certification for different markets (such as automotive, AIoT, defense, payments & transactions, memory & storage, server & cloud).
