Vendor: NTLab Category: Power Management Unit

NFC Power Management Unit (1.08 – 1.32 V output voltage, 50 nA output current)

130GF_PMU_01 is a Power Management Unit (PMU) block designed to supply embedded integrated circuits with stable and precise volta…

Contact Provider Request Datasheet
GlobalFoundries 130nm BCD Pre-Silicon View all specifications

Overview

130GF_PMU_01 is a Power Management Unit (PMU) block designed to supply embedded integrated circuits with stable and precise voltage, current and clock frequency. IP should derive it’s operating power from rectifier or external DC voltage source (Battery assisted operation).
PMU block consists of:
- DC Limiter (shunt);
- Capless low drop out voltage regulator (LDO);
- Reference current source;
- Power-On-Reset module (POR);
- 2 MHz oscillator.
The DC limiter has a built-in diode with a low voltage drop to prevent the discharge of the storage capacity back into the rectifier. The oscillator has frequency control inputs to compensate for process variation.

Key features

  • Global Foundries Embedded EEPROM 0.13 um
  • Input voltage limit with up to 50 mA shunt capability
  • Reverse current protection
  • Low drop out voltage regulator (capless solution)
  • Embedded Power-On-Reset module
  • Low current consumption
  • Battery assisted operation
  • Oscillator output frequency adjustment
  • Small area 0.068mm2.

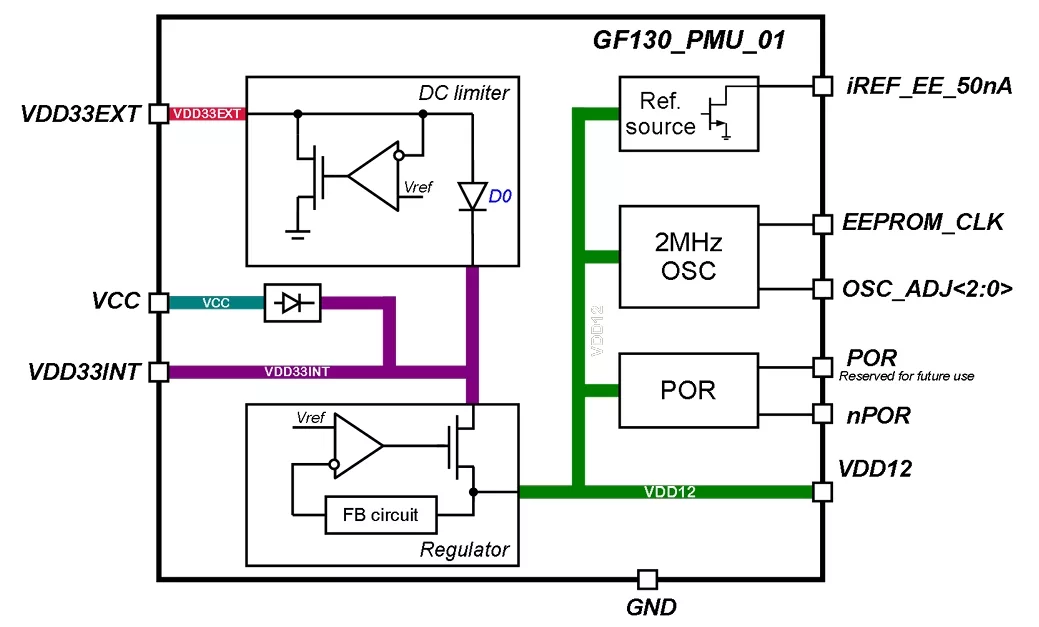

Block Diagram

130GF_PMU_01 block diagram

Applications

  • Access control systems
  • RFID systems, smart cards
  • Electronic devices with battery power
  • Chip serial ID and chip safety

What’s Included?

  • Schematic or NetList
  • Abstract view (.lef and .lib files)
  • Layout (optional)
  • Verilog behavior model
  • Extracted view (optional)
  • GDSII
  • DRC, LVS, antenna report
  • Test bench with saved configurations (optional)
  • Documentation

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Silicon Options

Foundry Node Process Maturity
GlobalFoundries 130nm BCD Pre-Silicon

Specifications

Identity

Part Number
130GF_PMU_01
Vendor
NTLab

Provider

NTLab
HQ: Lithuania
NTLab is a vertically integrated microelectronics design center. It has 70+ experienced and qualified engineers. NTLab specializes in the designing of mixed-signal and RF ICs and Systems-on-Chip. It has a wide range of own silicon-verified IP blocks: processor cores, interfaces, analog and high-frequency PHYs, etc., thus allowing customized design to be fast and predictable. In-company unique combination of competences in digital, analog and RF circuits and embedded software enables NTLab to participate in the projects that require deep research and utilize most sophisticated and advanced techniques: multi-system GPS/GLONASS/Galileo/BeiDou/NavIC(IRNSS)/QZSS/SBAS navigation, RF ID, wireless communications, etc. All designed ICs are provided with test and development tools, as well as with reference software. NTLab offers a wide range of silicon proven analog/mixed-signal IPs in 0.35µm, 0.25 µm, 0.18 µm, 0.13 µm, 0.09 µm, 65nm, 55nm, 40nm, 28nm, 22 nm CMOS and SiGe BiCMOS processes. These IPs are suitable for devices targeted both consumer and industrial markets. Most of these IPs have been proven in silicon on the foundries: Samsung, UMC, GlobalFoundries, SMIC, VIS, Tower, X-FAB, iHP, AMS, SilTerra, STMicroelectronics, Winfoundry.
Contact NTLab
