Dual Rail SRAM Globalfoundries 22FDX
Ultra-low voltage logic designs using adaptive body biasing demand dense SRAM solutions which fully integrate in the ABB aware im…
Overview
Ultra-low voltage logic designs using adaptive body biasing demand dense SRAM solutions which fully integrate in the ABB aware implementation and sign-off flow of the Racyics® ABX® Platform solution. The Racyics® Dual Rail SRAM supports ultra low voltage core logic operation down to 0.4 V while operating dense, low leakage standard bit cells from a 0.8 V memory supply.
Key features
- Single port SRAM compiler based on P124 bitcell with Dual-supply-rail architecture
- Bitcell array supply voltage 0.8V and ULV core interface down to 0.4V enabled with Racyics' ABX
- Direct interfacing to ULV Racyics® ABX digital standard cell domains without additional level shifters
- Fullset of characterization corners for -40°C to 125°C temperature range for Racyics® ABB aware timing and power sign-off
- Full statistical LVF characterization for low voltage operation
- Production test methodology available for ABB

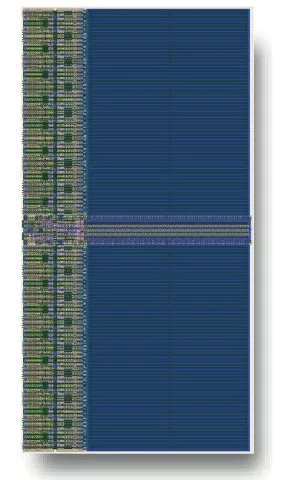

Block Diagram
ri_sram_gf22fdx_LL block diagram
What’s Included?
- Verilog simulation models
- .libidb timing (NLDM, CCS, LVF) and power models
- .lef layout abstract views
- Milkyway database
- GOSH layouts
- LVS netlist
Files
Note: some files may require an NDA depending on provider policy.
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| GlobalFoundries | 22nm | FDX | — |
Specifications
Identity
Part Number
ri_sram_gf22fdx_LL
Vendor
Racyics GmbH
Provider
Racyics GmbH
HQ:
Germany
Racyics is an experienced System-on-Chip design service provider with focus on advanced semiconductor nodes. We offer our customers a wide range of design services including custom IP and turnkey SoC solutions.
