Bluetooth Dual Mode v4.2 RF Transceiver IP
This RF transceiver IP is the design data base of a Bluetooth Dual Mode RF Transceiver extracted from a 40nm production chip.
Overview
This RF transceiver IP is the design data base of a Bluetooth Dual Mode RF Transceiver extracted from a 40nm production chip. It consists of a complete radio front-end integrating Basic Rate (BR), Enhanced Data Rate (EDR), Low Energy (LE) features fully compliant with the Bluetooth 4.2 specification. This RF is also co-existence proven and matured with WLAN and cellular. A special LPO for the high Sleep Clock Accuracy (SCA) is also integrated for the low power Bluetooth (BLE) applications.
Key features
- TSMC40nm
- High Volume Silicon Proven
- Extracted from Design Data Base of production chip
- Integrated balun
- Single RF I/O for Rx and Tx
- Full digital Tx direct-up modulation scheme
- Spectral clean Tx
- Max Output power
- FSK +13 dBm (typical)
- DPSK (2 and 3 Mb/s) +10 dBm
- RX Sensitivity -92dB
- Rx Sensitivity (dirty transmitter at IC: dirty transmitter at BER 0.1%)
- FSK -91 dBm
- DPSK 2Mb/s -91 dBm
- DPSK 3Mb/s -85 dBm
- Excellent low power consumption performance
- Fully integrated LDO’s, DCD converter PMU system
Block Diagram

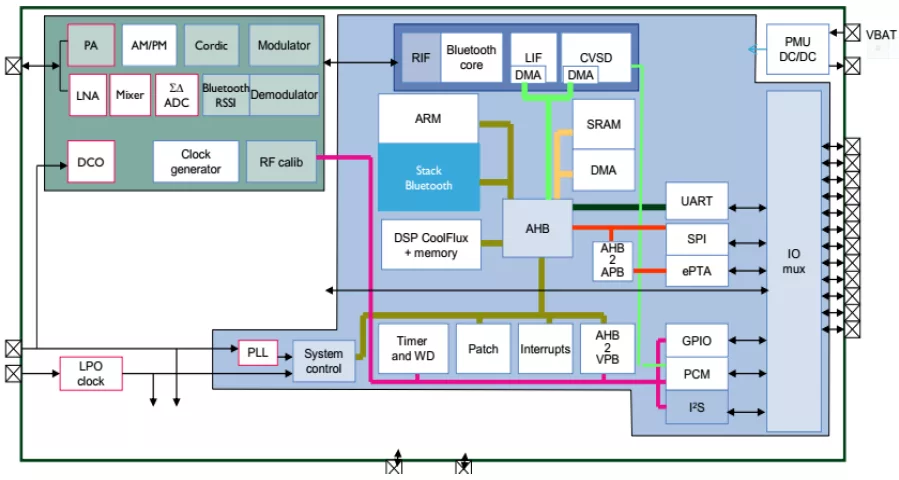

Bluetooth Dual Mode v4.2 RF Transceiver IP block diagram
What’s Included?
- Source Code Delivery with rights to modify
- Schematics
- Layout
- Certification Certificates
- Chip Test program
- KGD
Files
Note: some files may require an NDA depending on provider policy.
Specifications
Identity
Part Number
Bluetooth Dual Mode v4.2 RF Transceiver IP
Vendor
T2M GmbH
Provider
T2M GmbH
T2M GmbH is the leading Global Technology Company supplying state of the art complex semiconductor connectivity IPs and KGDs, enabling the creation of complex connected devices for Mobile, IoT and Wearable markets.
T2M's unique SoC White Box IPs are the design database of mass production RF connectivity chips supporting standards including Wifi, BT, BLE, Zigbee, NFC, LTE, GSM, GNS. They are available in source code as well as KGD for SIP / modules.
With offices in USA, Europe, China, Taiwan, South Korea, Japan, Singapore and India, T2M’s highly experienced team provides local support, accelerating product development and Time 2 Market.
