Vendor: Design Gateway Co., Ltd. Category: Symmetric Crypto

AES256-XTS IP Core

ES256-XTS IP Core (AES256XTSIP) implement the encryption standard (AES) with XEX Tweakable Block Cipher with Ciphertext Stealing …

Contact Provider Request Datasheet
AES View all specifications

Overview

ES256-XTS IP Core (AES256XTSIP) implement the advanced encryption standard (AES) with XEX Tweakable Block Cipher with Ciphertext Stealing (XTS) which is widely used in protecting the confidentiality of data on storage devices.

AES256-XTS-STG IP implement the advanced encryption standard (AES) with XEX (XOR Encrypt XOR) tweakable block cipher which operates sequences of complete blocks and is widely used in protecting the confidentiality of data on various storage devices with interfaces such as NVMe and SATA. We also have a lineup of "2X" ideal for NVMe PCIe Gen4, and "4X", supported Gen5.

Key features

  • Support AES-XTS mode
  • Support 256-bit key size
  • Support input data width128-bit
  • Support Ciphertext Stealing
  • Peak throughput rate at 128 Mbits/MHz
  • High-throughput, up to 51.2 Gbps @400MHz

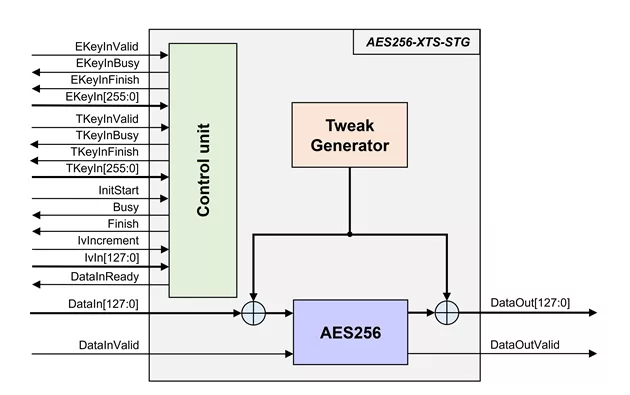

Block Diagram

AES256XTSIP block diagram

Specifications

Identity

Part Number
AES256XTSIP
Vendor
Design Gateway Co., Ltd.
Type
Silicon IP

Security

Crypto Algorithm
AES

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Design Gateway Co., Ltd.
HQ: Thailand
Design Gateway is a joint venture business engaging in Electronic and computer engineering industry. We provide design service in hardware and embedded system. Our innovative products are ranging from high quality controller boards, adjustable clock signal synthesizer, compact logic analyzers, LED Display and LED decorative system, etc. We are one of the fastest growing companies based on a solid foundation of our extremely talented engineering team and a high profile management.
Contact Design Gateway Co., Ltd.

Learn more about Symmetric Crypto IP core

RoT: The Foundation of Security

The goal of this white paper is to provide a primer introduction to RoT and how to choose a right RoT as the trust anchor for a novel hardware based security architecture

Frequently asked questions about Symmetric Cryptography IP cores

What is AES256-XTS IP Core?

AES256-XTS IP Core is a Symmetric Crypto IP core from Design Gateway Co., Ltd. listed on Semi IP Hub.

How should engineers evaluate this Symmetric Crypto?

Engineers should review the overview, key features, supported foundries and nodes, maturity, deliverables, and provider information before shortlisting this Symmetric Crypto IP.

Can this semiconductor IP be compared with similar products?

Yes. Buyers can compare this product with similar semiconductor IP cores or IP families based on category, provider, process options, and structured technical specifications.

×
