Vendor: iWave Systems Technologies Pvt. Ltd. Category: CPU

80186EC 16-bit microprocessor

The 80186EC is a 16-bit microprocessor core, executes instruction list compatible with 80186EC microprocessor.

Contact Provider Request Datasheet

Overview

The 80186EC is a powerful 16-bit microprocessor core, executes instruction list compatible with 80186EC microprocessor. The 80186EC core has a broad set of integrated peripherals, which helps reduce system development time and cost and is compatible with wide range of compilers and debuggers. The design along with multiple peripherals can be fit into single FPGA.

Key features

  • Interrupt Controller Unit
  • Edge trigger / level trigger selectable
  • Individually maskable interrupt requests
  • Programmable interrupt request priority orders
  • Supports Cascading and polling mode
  • 8 external interrupt request inputs (INTx ; x=0,1,2,..,7)
  • 7 internal interrupt input pins (SCU, TCU, and DMAU)

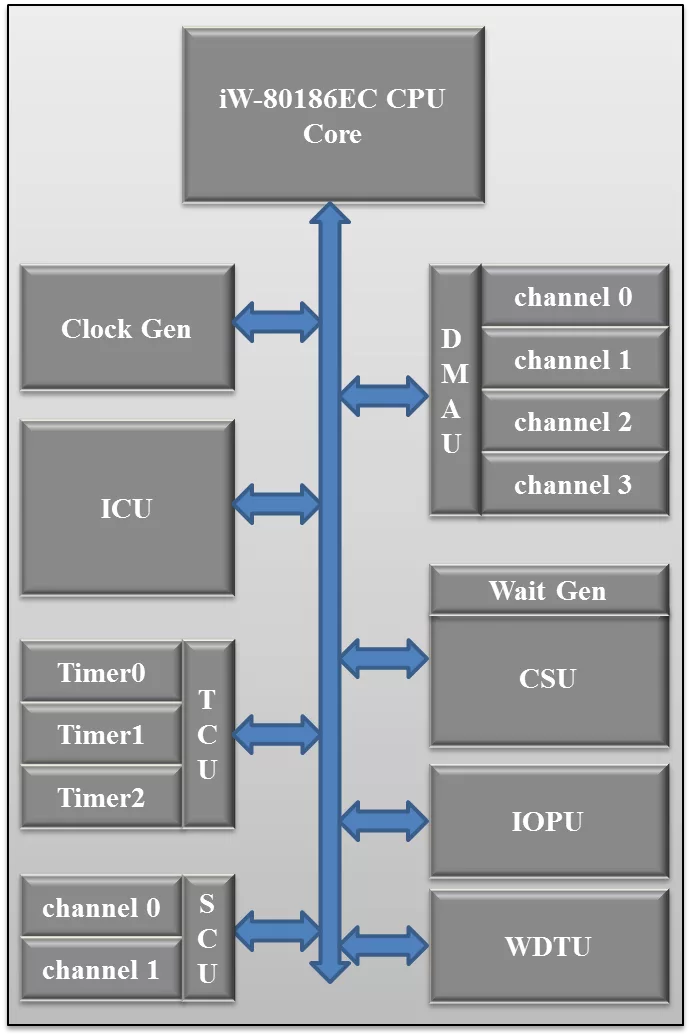

Block Diagram

80186EC Processor block diagram

Benefits

  • Compatible with Intel 80186EC instruction set
  • High FPGA integration enables lower BOM cost and smaller board design
  • Supports retarget and merge external peripherals and traditional custom old ASICs
  • Enhancements of system performance with increased operating frequency and integration

Applications

  • Typical processor applications such as industrial, Automotive, Medical etc.
  • Legacy platforms with obsolete components can be converted to new FPGA board

What’s Included?

  • Design Document
  • Verilog RTL or Netlist Source code
  • Test Bench
  • IP User Guide

Specifications

Identity

Part Number
80186EC Processor
Vendor
iWave Systems Technologies Pvt. Ltd.
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

iWave Systems Technologies Pvt. Ltd.
HQ: India
iWave Systems is a technology oriented organization founded in 1999 by enterprising technocrats, each with two decades of experience in the areas of Hardware and Embedded Software. We are an International design house with an energetic team of professionals with extensive experience in engineering real time embedded Systems. iWave Systems is poised to empower today's technology demands with appropriate, custom designed embedded system solutions. Our focus is in providing effective and efficient solutions to our customers at an optimal cost with an accelerated time-to-market. We help our customers worldwide to explore and leverage the state of the art technologies and achieve excellence in their business objectives.
Contact iWave Systems Technologies Pvt. Ltd.
