24.84 MHz phase-frequency detector with charge pump

The device consists of phase frequency detector (PFD), charge pump and lock detector (LD) PFD compares phases of a divided VCO si…

Contact Provider Request Datasheet
SMIC 180nm G Silicon Proven View all specifications

Overview

The device consists of phase frequency detector (PFD), charge pump and lock detector (LD) PFD compares phases of a divided VCO signal and a divided reference oscillator signal. PFD feeds control signal to charge pump at signals mismatch. Charge pump output current forms VCO control voltage.
Lock detector forms output logical “1” at input signals phase coincidence.
The block is fabricated on SMIC CMOS 0.18 um technology.

Key features

  • SMIC CMOS 0.18 um
  • Charge pump current control (40 uA, 60 uA, 80 uA, 100 uA)
  • Wide range of charge pump output voltage (0.3 V…1.56 V)
  • PFD polarity selection
  • Lock time selection (64, 128, 216, 512 periods of reference frequency signal)
  • Without external components
  • Portable to other technologies (upon request)

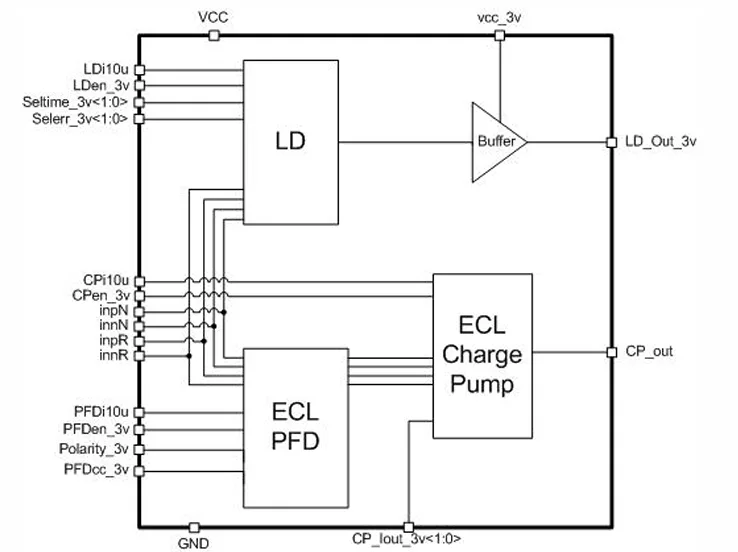

Block Diagram

180SMIC_PFD_02 block diagram

Applications

  • PLL
  • Frequency synthesizer
  • Functional signal generator
  • Communication devices

What’s Included?

  • Schematic or NetList
  • Abstract model (.lef and .lib files)
  • Layout view (optional)
  • Behavioral model (Verilog)
  • Extracted view (optional)
  • GDSII
  • DRC, LVS, antenna report
  • Test bench with saved configurations (optional)
  • Documentation

Silicon Options

Foundry Node Process Maturity
SMIC 180nm G Silicon Proven

Specifications

Identity

Part Number
180SMIC_PFD_02
Vendor
NTLab
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.
