Vendor: NTLab Category: Oscillator

1692 to 1973 MHz Voltage Controlled Oscillator

Voltage-controlled oscillator (VCO) is the generator that can be tuned over a wide range of frequencies by applying a control vol…

Contact Provider Request Datasheet

Overview

Voltage-controlled oscillator (VCO) is the generator that can be tuned over a wide range of frequencies by applying a control voltage to it.
Frequency tuning range is defined by a control voltage of a built-in switched capacitor sections, and the built-in varicap is used for a fine adjustment.
VCO buffer can work with external VCO signals.

Key features

  • AMS BiCMOS 0.35 um
  • Low phase noise level
  • Wide frequency range (1692…1973 MHz)
  • Adjustable output voltage swing
  • Low current consumption 1.8 mA
  • Portable to other technologies (upon request)

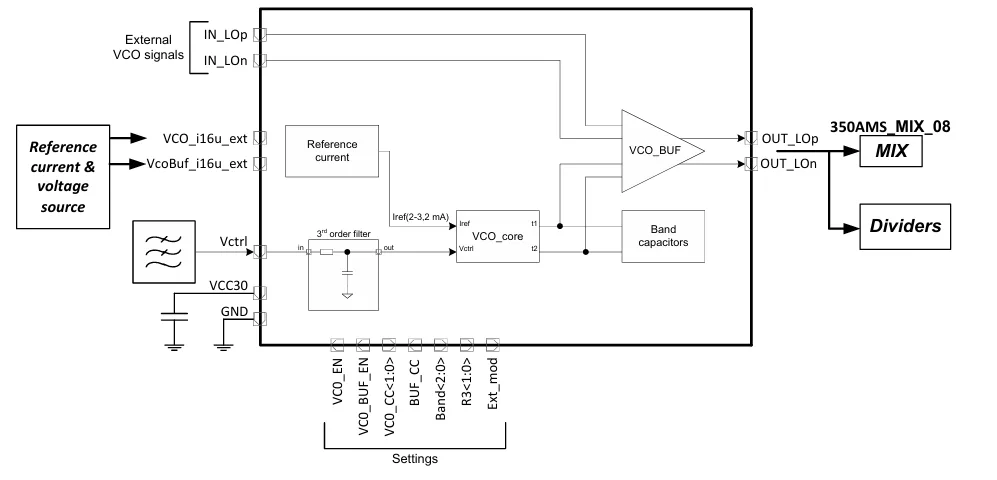

Block Diagram

350AMS_VCO_06 block diagram

Applications

  • Frequency synthesizer with PLL

What’s Included?

  • Schematic or NetList
  • Abstract model (.lef and .lib files)
  • Layout view (optional)
  • Behavioral model (Verilog)
  • Extracted view (optional)
  • GDSII
  • DRC, LVS, antenna report
  • Test bench with saved configurations (optional)
  • Documentation

Specifications

Identity

Part Number
350AMS_VCO_06
Vendor
NTLab
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

NTLab
HQ: Lithuania
NTLab is a vertically integrated microelectronics design center. It has 70+ experienced and qualified engineers. NTLab specializes in the designing of mixed-signal and RF ICs and Systems-on-Chip. It has a wide range of own silicon-verified IP blocks: processor cores, interfaces, analog and high-frequency PHYs, etc., thus allowing customized design to be fast and predictable. In-company unique combination of competences in digital, analog and RF circuits and embedded software enables NTLab to participate in the projects that require deep research and utilize most sophisticated and advanced techniques: multi-system GPS/GLONASS/Galileo/BeiDou/NavIC(IRNSS)/QZSS/SBAS navigation, RF ID, wireless communications, etc. All designed ICs are provided with test and development tools, as well as with reference software. NTLab offers a wide range of silicon proven analog/mixed-signal IPs in 0.35µm, 0.25 µm, 0.18 µm, 0.13 µm, 0.09 µm, 65nm, 55nm, 40nm, 28nm, 22 nm CMOS and SiGe BiCMOS processes. These IPs are suitable for devices targeted both consumer and industrial markets. Most of these IPs have been proven in silicon on the foundries: Samsung, UMC, GlobalFoundries, SMIC, VIS, Tower, X-FAB, iHP, AMS, SilTerra, STMicroelectronics, Winfoundry.
Contact NTLab
