Overview

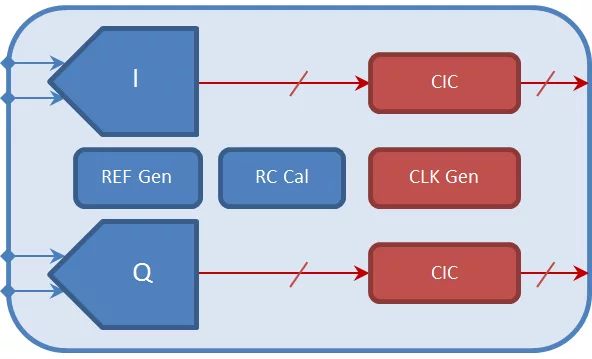

The silicon-validated TRV103GFY40LP IP is a 1.1V low-power 12-bit 64MHz-to-340MHz continuous-time Delta-Sigma ADC with OSR of 32 and implemented in Global Foundry Low-Power 40nm CMOS process technology. Its scalable 1MHz to 5.3125MHz signal bandwidth makes it especially suitable for use in wireless and broadcast integrated circuit subsystems (LTE, WiMAX, DAB, DAB+, FM, HDFM, DRM, etc).
