11 Bit 100 kS/s Ultra-Low Power SAR ADC on GlobalFoundries 22FDSOI

The ADC IP is a general-purpose successive approximation converter for low-power medium resolution applications.

GlobalFoundries 22nm FDX Silicon Proven View all specifications

Overview

The ADC IP is a general-purpose successive approximation converter for low-power medium resolution applications. Sample rate, resolution and power consumption are configurable.

It is built using typical differential capacitor-DAC architecture, clocked comparator and bootstrapped switches. No additional reference voltage is required, achieving lmost rail-to-rail input. The target applications are environmental and biomedical signal processing.

The ADC is silicon proven using the GlobalFoundries 22FDSOI process. Measurement results and samples are available.

Fraunhofer IIS provides a detailed documentation and support for the IP integration. Modifications, extensions and technology ports of the IP are available on request.

Key features

  • Resolution: 11 bit
  • Conversion rate: 100 kSps
  • Power consumption: 2.5 µW @ 0.8V
  • ENOB: 8.8  bit
  • Operation clock: 2.0 MHz
  • Input voltage range: 0.4 V ± 0.35 V
  • Operating temperature -40 – 125°C
  • Technology: cmos22fdsoi

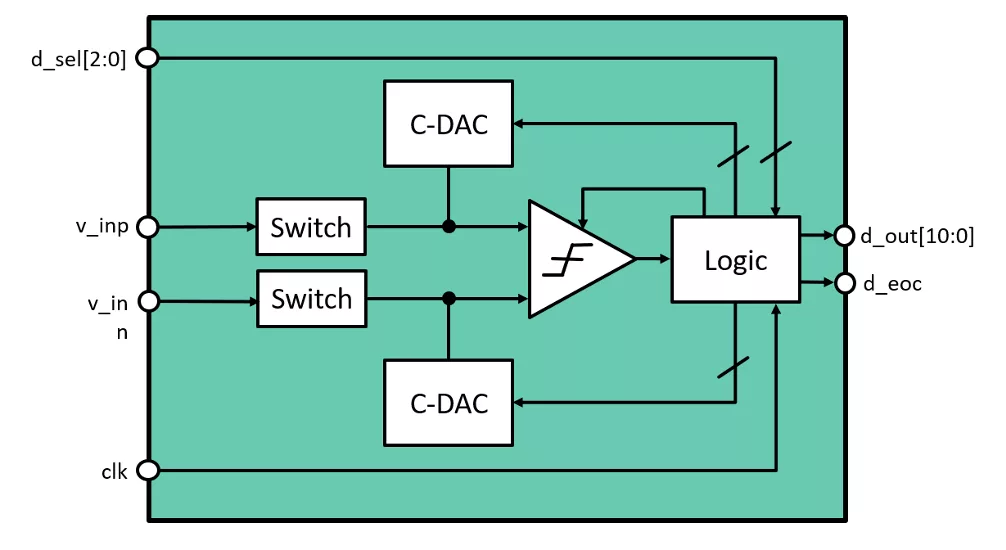

Block Diagram

Benefits

  • Accelerated design service
  • Design safety (first-time-right)
  • Customer-specific flexible IPs
  • Automated DfR and verification
  • Seamless technology migration

What’s Included?

  • GDSII data
  • Simulation model
  • Documentation
  • Integration and customizing support

Files

Note: some files may require an NDA depending on provider policy.

Silicon Options

Foundry Node Process Maturity
GlobalFoundries 22nm FDX Silicon Proven

Specifications

Identity

Part Number
ADC11b100kS22nm
Vendor
Fraunhofer Institute Integrated Circuits and Systems (IIS)

Provider

Fraunhofer Institute Integrated Circuits and Systems (IIS)
HQ: Germany
The Fraunhofer Institute for Integrated Circuits (IIS) offers core components for ASIC and FPGA solutions. The cores are developed by Fraunhofer IIS in Erlangen, Germany and selected partners. Over 25 years of system and design know-how, analog and digital design experience, and the needs of our customers have influenced the methodology to develop these cores. Each core has been verified with sophisticated test procedures at Fraunhofer IIS before it is offered to the customers. As a result, the cores are of high quality and proven technology. Many components are parameterizable and allow the designer to tailor each component to the needs of the application. Therefore, using our components saves lots of design and verification effort.
