Vendor: NTLab Category: Oscillator

10 to 50 MHz crystal oscillator

180TSMC_OSC_04 is a reference frequency generator designed to form a reference signal in the frequency range from 10 to 50MHz.

Contact Provider Request Datasheet
TSMC 55nm GP Silicon Proven View all specifications

Overview

180TSMC_OSC_04 is a reference frequency generator designed to form a reference signal in the frequency range from 10 to 50MHz. Both an internal and an external generator can be used as a reference signal source Tunable internal load capacitance allows to adjust the quartz resonator frequency without using external components. The reference signal indicator informs the control system about the generation failure or the reference signal absence.

Key features

  • TSMC CMOS 55 nm
  • Output frequency 10-50 MHz
  • Wide supply voltage range from 2.2 to 3.6V

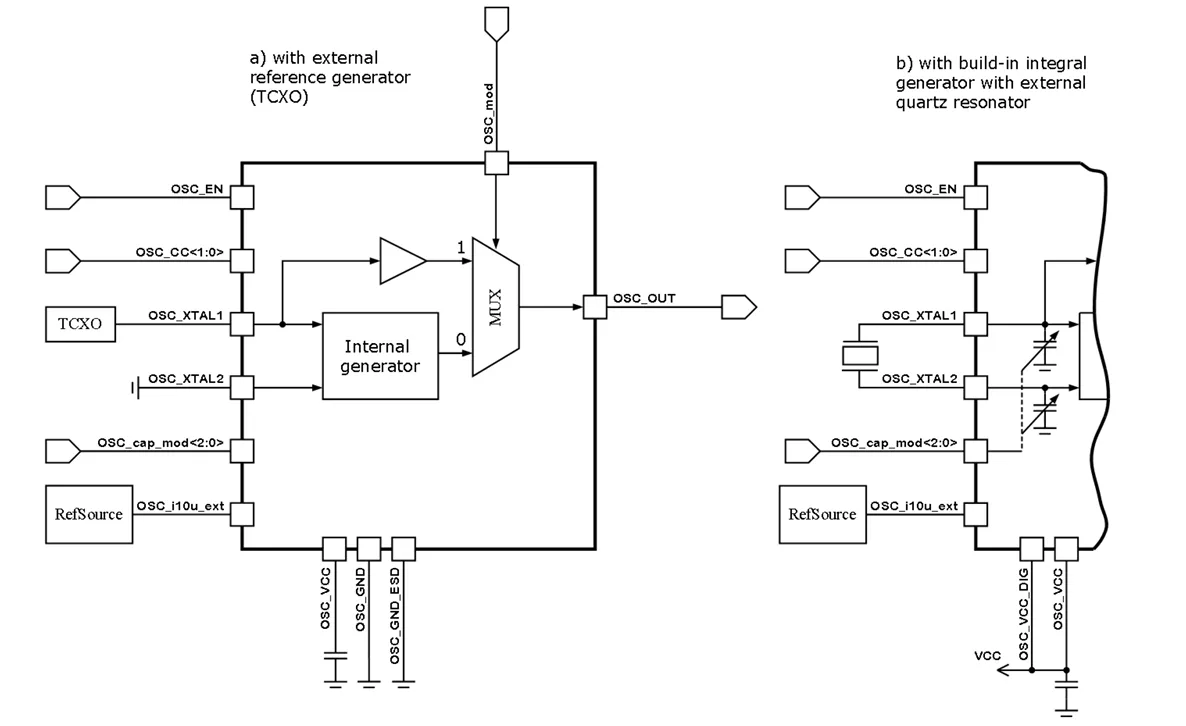

Block Diagram

180TSMC_OSC_04 block diagram

Applications

  • Timekeeping devices
  • PLL frequency synthesizer
  • Applications that require an accurate process timing
  • Products with long automated unattended operation time

What’s Included?

  • Schematic or NetList
  • Abstract model (.lef and .lib files)
  • Layout view (optional)
  • Behavioral model (Verilog)
  • Extracted view (optional)
  • GDSII
  • DRC, LVS, antenna report
  • Test bench with saved configurations (optional)
  • Documentation

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Silicon Options

Foundry Node Process Maturity
TSMC 55nm GP Silicon Proven

Specifications

Identity

Part Number
180TSMC_OSC_04
Vendor
NTLab

Provider

NTLab
HQ: Lithuania
NTLab is a vertically integrated microelectronics design center. It has 70+ experienced and qualified engineers. NTLab specializes in the designing of mixed-signal and RF ICs and Systems-on-Chip. It has a wide range of own silicon-verified IP blocks: processor cores, interfaces, analog and high-frequency PHYs, etc., thus allowing customized design to be fast and predictable. In-company unique combination of competences in digital, analog and RF circuits and embedded software enables NTLab to participate in the projects that require deep research and utilize most sophisticated and advanced techniques: multi-system GPS/GLONASS/Galileo/BeiDou/NavIC(IRNSS)/QZSS/SBAS navigation, RF ID, wireless communications, etc. All designed ICs are provided with test and development tools, as well as with reference software. NTLab offers a wide range of silicon proven analog/mixed-signal IPs in 0.35µm, 0.25 µm, 0.18 µm, 0.13 µm, 0.09 µm, 65nm, 55nm, 40nm, 28nm, 22 nm CMOS and SiGe BiCMOS processes. These IPs are suitable for devices targeted both consumer and industrial markets. Most of these IPs have been proven in silicon on the foundries: Samsung, UMC, GlobalFoundries, SMIC, VIS, Tower, X-FAB, iHP, AMS, SilTerra, STMicroelectronics, Winfoundry.
