10-bit 1-channel 1 to 100 MSPS current DAC

The 10-bit dual high-speed DAC is based on current steering architecture, which provides high-speed conversion rate and good dyna…

Contact Provider Request Datasheet
10 Bit TSMC 90nm CIS Silicon Proven View all specifications

Overview

The 10-bit dual high-speed DAC is based on current steering architecture, which provides high-speed conversion rate and good dynamic performance. DAC consists of four principal blocks: adjustable bias, control logic, current source array and current output switches. Device has a feature of adjusting output current, output cascade transistors bias voltage, and entering sleep mode, turning device off. DAC requires 1 V digital supply, 1.8 V digital and analog supply, and digital and analog ground to work properly. Pins dac_adj[4:0] adjust DAC output current and pins vbias_cm0_adj[2:0] adjust output cascades transistors bias voltage.

Key features

  • TSMC CMOS 90 nm
  • Dual DAC
  • Resolution 10 bit
  • 100 MSPS update rate
  • High spurious free dynamic range performance up to 25 MHz output
  • Differential current output
  • Adjustable output current (from 1.8 mA to 20 mA)
  • Power dissipation from 5.4 mW to 38 mW (depending on level of output current)
  • Reset Mode
  • Sleep mode (current consumption less than 200 nA)
  • Portable to other technologies (upon request)

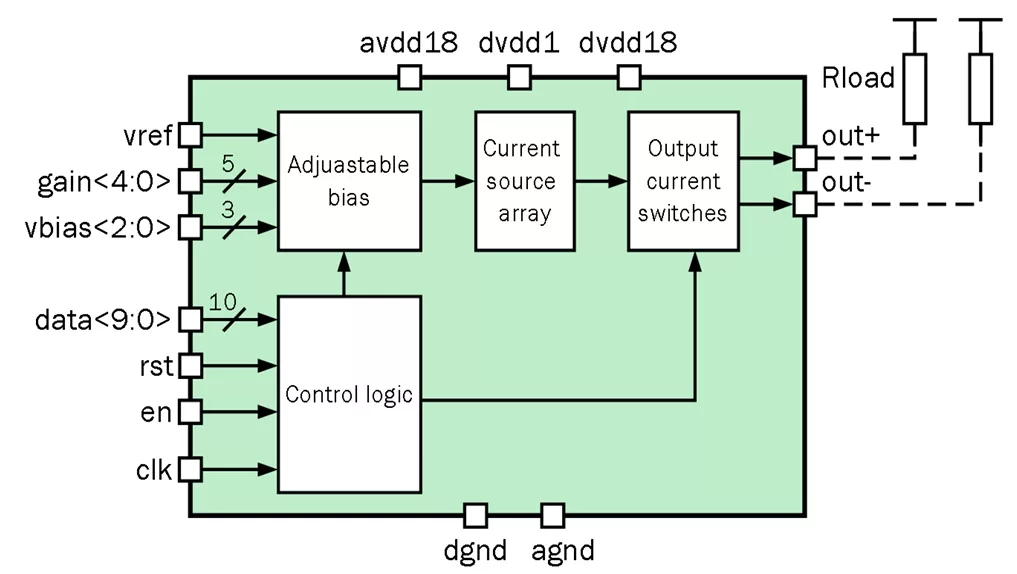

Block Diagram

090TSMC_DAC_01 block diagram

Applications

  • Wireless infrastructures
  • Broadband communications
  • Picocell, femtocell base stations
  • Medical instrumentation
  • Ultrasound transducer excitation
  • Signals and arbitrary waveform generators

What’s Included?

  • Schematic or NetList
  • Abstract model (.lef and .lib files)
  • Layout view (optional)
  • Behavioral model (Verilog)
  • Extracted view (optional)
  • GDSII
  • DRC, LVS, antenna report
  • Test bench with saved configurations (optional)
  • Documentation

Silicon Options

Foundry Node Process Maturity
TSMC 90nm CIS Silicon Proven

Specifications

Identity

Part Number
090TSMC_DAC_01
Vendor
NTLab
Type
Silicon IP

Analog

Resolution bits
10 Bit

Files

Product Sheet Download
