Vendor: Lekha Wireless Solutions Pvt. Ltd. Category: Channel Coding

WCDMA Release 9 compliant Viterbi Decoder

The Lekha IP – 3GPP WCDMA Viterbi Decoder IP Core V1.0 addresses the implementation of the Viterbi Decoder defined as part of the…

Contact Provider Request Datasheet

Overview

The Lekha IP – 3GPP WCDMA Viterbi Decoder IP Core V1.0 addresses the implementation of the Viterbi Decoder defined as part of the Forward Error Correction block compliant to 3GPP TS 25.212 V 9.5.0

Key features

  • WCDMA Release 9 Compliant
  • Implements Viterbi decoder to address the convolution encoded bit stream as defined in Section 4.2.3.1 of the specification 3GPP TS 25.212 V 9.5.0 Release 9
  • Supports all block sizes i.e., K=40 – 504.
  • Constraint length of 9
  • Configurable Code rate of 1/2 and 1/3 with rate matching for other code rates supported
  • Easy interface definition
  • Easy support for rate matching and bit collection
  • Customization to AXI or Avalon bus interface supported.
  • Bit accurate simulation models available for RTL test vector generation.

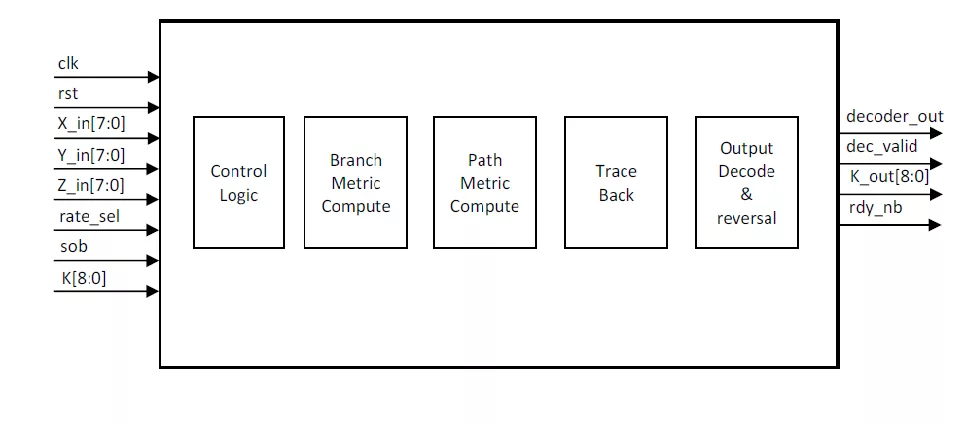

Block Diagram

3GPP WCDMA Viterbi Decoder block diagram

Benefits

  • Easily portable across various FPGA families from different vendors
  • Customization support available
  • Optimized for performance and area

Applications

  • W CDMA Forward error correction block

What’s Included?

  • Licensable in Netlist or Verilog or VHDL source format
  • Target technology – Xilinx, Altera, Lattice devices
  • Test bench
  • C, VHDL, Verilog simulation models available
  • Detailed technical documentation

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
3GPP WCDMA Viterbi Decoder
Vendor
Lekha Wireless Solutions Pvt. Ltd.

Provider

Lekha Wireless Solutions Pvt. Ltd.
HQ: Karnataka, India
Lekha is a Technology solutions company providing end-to-end solutions in the areas of Wireless communications and Embedded Systems. Our focus areas are Wireless Communications, FPGA design, Hardware Board Design, and Embedded software development. In these focus areas, we offer Product design services, System integration and customization services. There is a strong and growing IP portfolio that can be licensed to accelerate product development cycles. With a strong engineering talent pool, we are also well positioned to serve our customers to succeed in deploying products and solutions that are rich in features and competitive in pricing. We are flexible with our business models and uncompromising about the high standards of delivery. We are rightly equipped to handle turnkey product solutions, customization efforts, or ODC needs of our customers.
