Video Scaler

Video Scaler converts the video signals from one resolution to another resolution.

Contact Provider Request Datasheet

Overview

Video Scaler converts the video signals from one resolution to another resolution. This core can be used to convert low resolution to high or high resolution to low.

Key features

  • Scaling factor: downscale/upscale by min 1 to max 4 independently in vertical and horizontal direction
  • Programmable non-integer scaling factor
  • Algorithm: 5-tap interpolating filter
  • Quantization Level: Inter Pixel = 6, Filter Coefficients = 12
  • Coefficients are software programmable
  • Image size programmable from QCIF to Full HD
  • Video Format: 4:4:4 RGB/YCbCr
  • 8-bit per pixel per color
  • 3 color plane in parallel processing

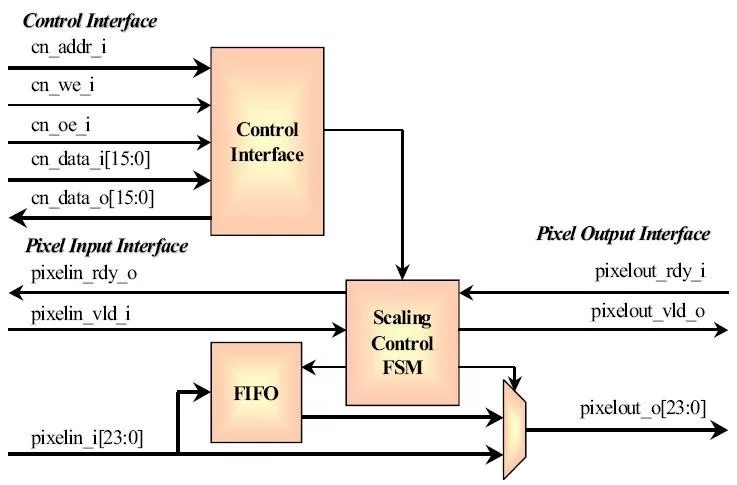

Block Diagram

Video Scaler block diagram

Benefits

  • Can be used to resize input resolution to any size from 1 to 4
  • Core converts the standard definition video signals to high definition for display on LCD/LED monitor.

Applications

  • Computer monitors
  • Scan conversion devices
  • Video editing and broadcasting equipment

What’s Included?

  • ...

Specifications

Identity

Part Number
Video Scaler
Vendor
iWave Systems Technologies Pvt. Ltd.
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

iWave Systems Technologies Pvt. Ltd.
HQ: India
iWave Systems is a technology oriented organization founded in 1999 by enterprising technocrats, each with two decades of experience in the areas of Hardware and Embedded Software. We are an International design house with an energetic team of professionals with extensive experience in engineering real time embedded Systems. iWave Systems is poised to empower today's technology demands with appropriate, custom designed embedded system solutions. Our focus is in providing effective and efficient solutions to our customers at an optimal cost with an accelerated time-to-market. We help our customers worldwide to explore and leverage the state of the art technologies and achieve excellence in their business objectives.
