Digital Capacitive Plus Bridge Sensor Interfaces

The MVCBT015 is a programmable, accurate, capacitance-to-digital converter and bridge interface that is designed to be easily int…

Contact Provider Request Datasheet

Overview

The MVCBT015 is a programmable, highly accurate, capacitance-to-digital converter and bridge interface that is designed to be easily integrated with capacitive and bridge sensors. The chip features very fast measurement times, low operating power, and very low standby currents, making it very suitable for low power and portable applications. The ASIC also includes a high-accuracy integrated temperature sensor that enables the user to compensate for temperature dependencies of the sensor elements, as needed.

Temperature Range -40 to 125°C
Input Capacitance Range 2 to 7 pF
Temperature RMS Noise 0.01°C
Capacitance RMS Noise 0.4fF @ 1pF input range
Bridge RMS Noise 4.5µVrms @ 50mV input range
Average Current for One Meas./sec

14-Bit Capacitance: 0.5µA

14-Bit Temperature: 0.6µA

16-Bit Bridge: 1.7uA
Power Supply Voltage 1.71 to 3.6V
Ultra-low Standby Current 25nA
Output Digital I2C and SP

Key features

  • Trimmable input capacitance range, for flexibility and dynamic range optimization
  • Internally regulated bridge-excitation voltage
  • Internal high-accuracy and low-drift temperature sensor
  • On-chip processing engine for linearization and temperature compensation – provides end user with a fully calibrated output
  • Programmable resolution settings for each measurement mode:
    • 8, 10, 12, and 14-Bit for the temperature sensor and the capacitance interface
    • 14, 16, 18, and 20-Bit for the bridge sensor interface
  • Ultra-low sleep current

Block Diagram

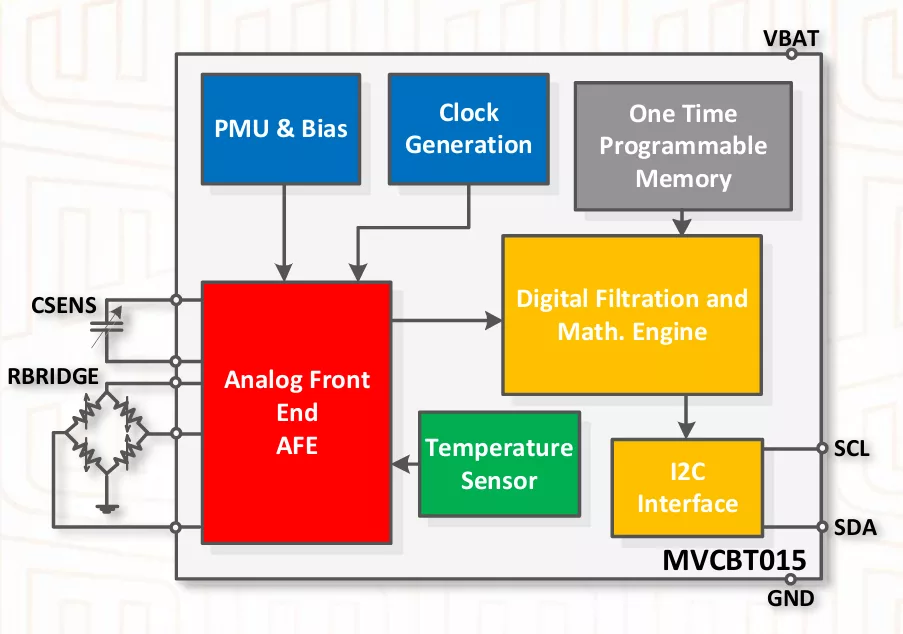

MVCBT015 block diagram

Applications

  • Pressure, Humidity, and Temperature Monitoring
  • Home Automation Control
  • HVAC / VAV
  • Pressure Transmitters
  • IoT Environmental Sensing
  • Level Sensing

Specifications

Identity

Part Number
MVCBT015
Vendor
MEMS Vision
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

MEMS Vision
HQ: Canada
MEMS VISION is a leading semiconductor, sensors and MEMS company providing cutting-edge miniaturization solutions to the $5B sensors and high performance electronics markets. The company capitalizes on a strong portfolio of patents and intellectual property on MEMS and ICs, and a team of highly qualified personnel, to offer a wide range of sensors related products and services to its customers and partners. We are specialized in the design of MEMS interfaces and IPs with focus on high performance and low power designs. We have a wide portfolio of IPs that include low noise sensing and sensor interfacing circuits, MEMS resonators for timing and clocking applications and digital signal processing circuits. We also offer customized design services and turn-key solutions.
