Vendor: Omni Design Technologies, Inc. Category: DAC

Current Output 12 Bit 250 MSPS DAC on 16nm

The ODT-DAC-12B9G-16 is a high-performance current steering 12-bit DAC that operates at an update rate of up to 9GSPS.

Contact Provider Request Datasheet
12 Bit View all specifications

Overview

The ODT-DAC-12B9G-16 is a high-performance current steering 12-bit DAC that operates at an update rate of up to 9GSPS.  The DAC uses a proprietary architecture that reduces harmonic and intermodulation distortions at high output frequency and amplitudes.

The high-performance DAC supports a peak CW output power of 0dBm and achieves up to ‑153dBm/Hz noise spectral density with excellent SFDR.

The DAC is powered by a 1.8V and 1.2V analog supply, a 2.1V output supply and a 0.8V digital supply.

Key features

  • 12-bit resolution
  • 9GSPS update rate
  • 0dBm CW output power
  • Differential 20mA current (sink) output
  • 3GHz output bandwidth
  • -153dBm/Hz noise spectral density
  • 63dBc SFDR at FO=1.7GHz, -1dBFS
  • Embedded direct digital synthesis (DDS) module
  • Functional from -40°C to 125°C

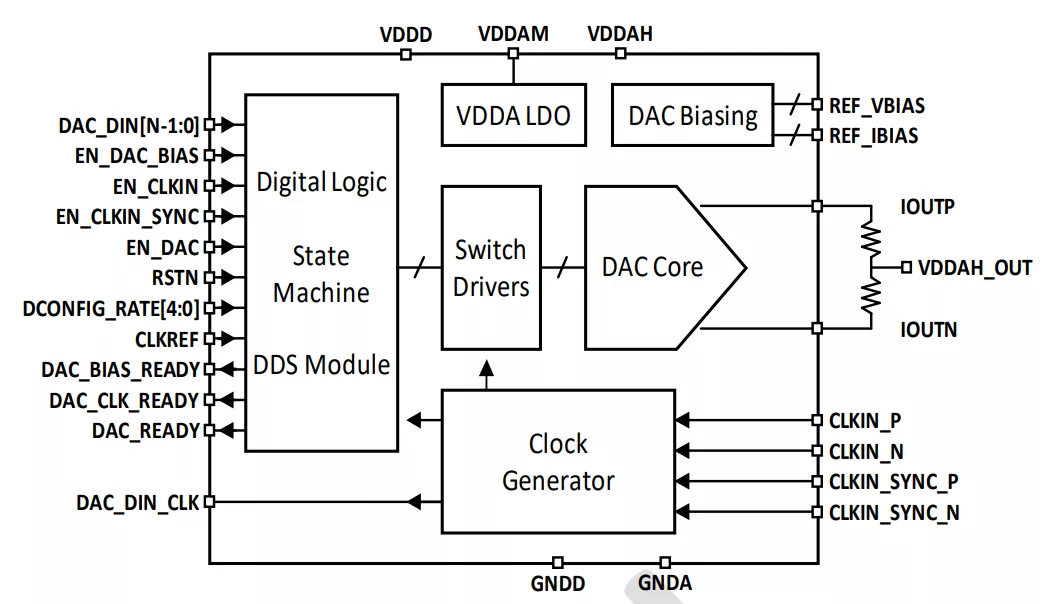

Block Diagram

ODT-DAC-12B9G-16 block diagram

Applications

  • General purpose software defined radio
  • DOCSIS transmitter
  • Cellular base station
  • Broadband communications
  • Wideband satellite transmitter

What’s Included?

  • Datasheet
  • Hard Macro (GDSII)
  • Characterization Report (as applicable)
  • Abstract View (LEF) for top level connectivity
  • Integration and Customer Support

Specifications

Identity

Part Number
ODT-DAC-12B9G-16
Vendor
Omni Design Technologies, Inc.
Type
Silicon IP

Analog

Resolution bits
12 Bit

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Omni Design Technologies, Inc.
HQ: USA
Omni Design Technologies, Inc. is a developer of disruptive, ultra-low power semiconductor embedded circuits (IP Cores), including ultra-low power analog circuits, highly-efficient interface circuits and connected sensors. Our patented and proprietary technology offers solutions that use dramatically lower power and provide superior performance, architected from the ground up to take advantage of deep sub-micron CMOS processes. Omni Design’s mission is to provide a wide range of ultra low-power, high performance embedded circuits configured to enable highly-differentiated semiconductor systems and plug-and-play system-on-chip (SoC) development. Our IP offerings target SoCs that address a wide range of application areas including IoT, test and measurement, high speed interfaces, communications, medical imaging, and sensor hubs. Omni Design Technologies, Inc. is a privately held company with offices in Milpitas, CA and Boston, MA. Omni Design was founded in 2015 by a team of semiconductor industry veterans, technologists, and experienced entrepreneurs with a successful track record of delivering high performance analog solutions that advance the state of the art.
